In the amplifier circuit shown below, the BJT transistor has a β = 99 and the base emitter junction of the BJT when it is forward biased has a voltage drop of 0.7 V, i.e., VBE = 0.7 V. Consider that all three external capacitors shown in this circuit have very large values. Determine the DC values of the parameters shown in the Table below.

In the amplifier circuit shown below, the BJT transistor has a β = 99 and the base emitter junction of the BJT when it is forward biased has a voltage drop of 0.7 V, i.e., VBE = 0.7 V. Consider that all three external capacitors shown in this circuit have very large values. Determine the DC values of the parameters shown in the Table below.

Image text
In the amplifier circuit shown below, the BJT transistor has a β = 99 and the base emitter junction of the BJT when it is forward biased has a voltage drop of 0.7 V, i.e., VBE = 0.7 V. Consider that all three external capacitors shown in this circuit have very large values. Determine the DC values of the parameters shown in the Table below.

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

In this amplifier circuit, the high and low DC voltage sources are: VDD = 5 V and VSS = −5 V respectively. Consider that all three external capacitors have high values. The PMOS transistor has a threshold voltage equal to Vt = −1 V and kp = kp′(W/L) = 0.4 mA/V2, and the NMOS transistor has a threshold voltage Vt = 1 V and a kn = kn′(W/L) = 2 mA/V2. It was shown in HW#7 that the DC drain voltage of the PMOS transistor is −0.2 V and the DC source of the NMOS transistor is −2 V. a) Perform the small signal analysis of this circuit and determine the voltage gain: AV = Vo/Vi b) Determine the input and output resistance of this amplifier Rin and Rout . c) Discuss what is the purpose of the part of the circuit between CC2 and CC3 which includes the NMOS transistor in this amplifier design. d) Determine the parameters of a simple voltage amplifier model (discussed in chapter 1) which will represent this amplifier. Note that the parameters of the simple voltage amplifier excludes any series resistance of the external source ( Vi ) (in this case it is zero anyway) and the load resistance (in this case RL = 2 kΩ ). e) Using the simple model from part (c) determine the voltage gain AV = Vo/Vi and see if it agrees with the answer of part (a). VDD
Solution
0 0

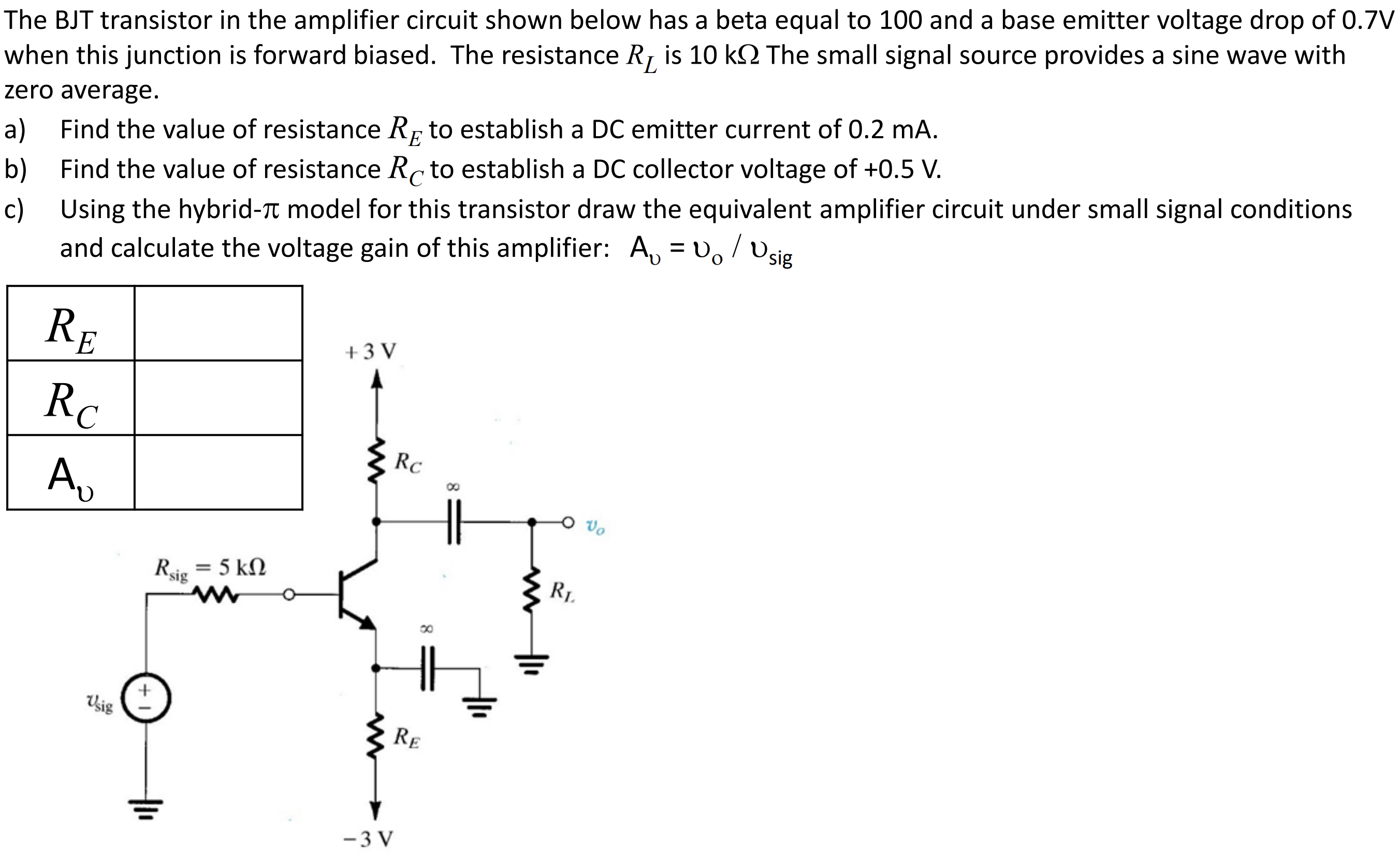

The BJT transistor in the amplifier circuit shown below has a beta equal to 100 and a base emitter voltage drop of 0.7 V when this junction is forward biased. The resistance RL is 10 kΩ The small signal source provides a sine wave with zero average. a) Find the value of resistance RE to establish a DC emitter current of 0.2 mA. b) Find the value of resistance RC to establish a DC collector voltage of +0.5 V. c) Using the hybrid-π model for this transistor draw the equivalent amplifier circuit under small signal conditions and calculate the voltage gain of this amplifier: Av = vo/vsig
