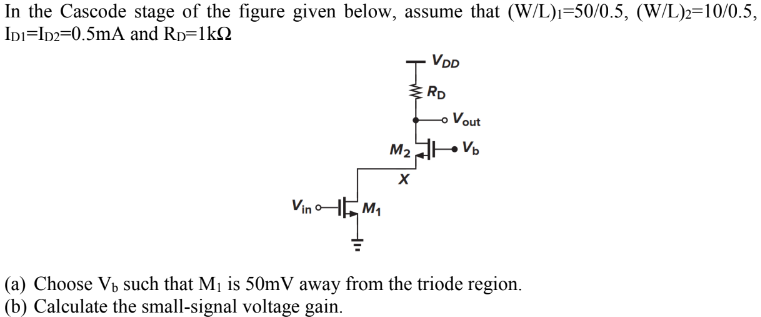

In the Cascode stage of the figure given below, assume that (W/L)1 = 50/0.5, (W/L)2 = 10/0.5, ID1 = ID2 = 0.5 mA and RD = 1 kΩ (a) Choose Vb such that M1 is 50 mV away from the triode region. (b) Calculate the small-signal voltage gain.

In the Cascode stage of the figure given below, assume that (W/L)1 = 50/0.5, (W/L)2 = 10/0.5, ID1 = ID2 = 0.5 mA and RD = 1 kΩ (a) Choose Vb such that M1 is 50 mV away from the triode region. (b) Calculate the small-signal voltage gain.

Image text
In the Cascode stage of the figure given below, assume that (W/L)1 = 50/0.5, (W/L)2 = 10/0.5, ID1 = ID2 = 0.5 mA and RD = 1 kΩ (a) Choose Vb such that M1 is 50 mV away from the triode region. (b) Calculate the small-signal voltage gain.
