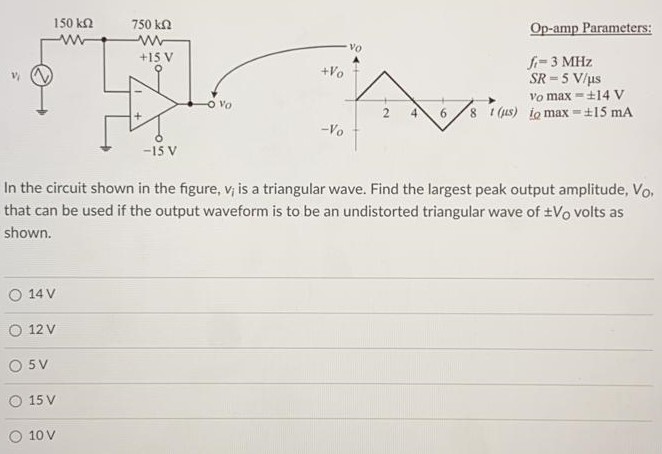

In the circuit shown in the figure, vi is a triangular wave. Find the largest peak output amplitude, VO, that can be used if the output waveform is to be an undistorted triangular wave of ±VO volts as shown. 14 V 12 V 5 V 15 V 10 V Op-amp Parameters: ft = 3 MHz SR = 5 V/µs Vo max = ±14 V io max = ±15 mA
