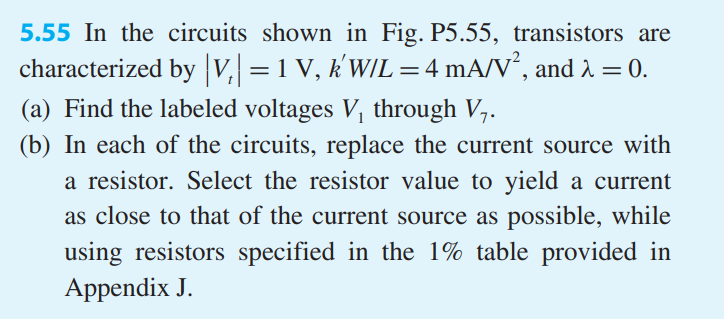

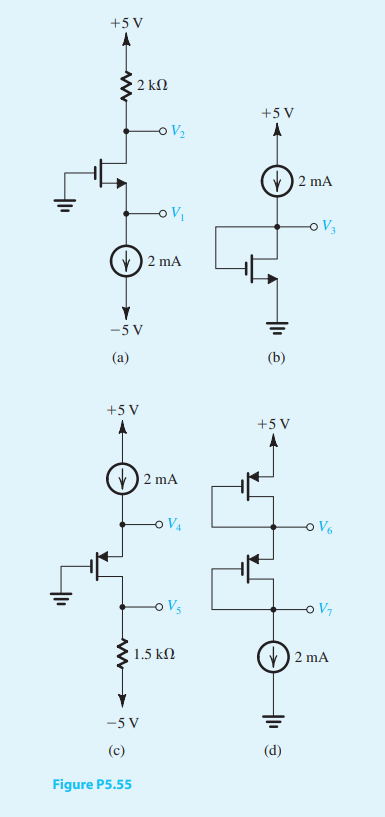

In the circuits shown in Fig. P5.55, transistors are characterized by |Vt| = 1 V, k’W/L = 4 mA/V2 , and λ = 0. (a) Find the labelled voltages V1 through V7. (b) In each of the circuits, replace the current source with a resistor. Select the resistor value to yield a current as close to that of the current source as possible, while using resistors specified in the 1% table provided in Appendix J.

In the circuits shown in Fig. P5.55, transistors are characterized by |Vt| = 1 V, k’W/L = 4 mA/V2 , and λ = 0. (a) Find the labelled voltages V1 through V7. (b) In each of the circuits, replace the current source with a resistor. Select the resistor value to yield a current as close to that of the current source as possible, while using resistors specified in the 1% table provided in Appendix J. In the circuits shown in Fig. P5.55, transistors are characterized by |Vt| = 1 V, k’W/L = 4 mA/V2 , and λ = 0. (a) Find the labelled voltages V1 through V7. (b) In each of the circuits, replace the current source with a resistor. Select the resistor value to yield a current as close to that of the current source as possible, while using resistors specified in the 1% table provided in Appendix J.

Image text
In the circuits shown in Fig. P5.55, transistors are characterized by |Vt| = 1 V, k’W/L = 4 mA/V2 , and λ = 0. (a) Find the labelled voltages V1 through V7. (b) In each of the circuits, replace the current source with a resistor. Select the resistor value to yield a current as close to that of the current source as possible, while using resistors specified in the 1% table provided in Appendix J.

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up

Similar/Related Questions

To improve the performance of the differential amplifier shown in Figure Q1, the biasing current source is replaced by a Widlar current source. The collector resistors are replaced by a current mirror formed by the matched bipolar transistors Qs and Q6, and the bipolar transistors Q1 and Q2 are replaced by the matched field-effect transistors M1 and M2. A single-sided output at the drain terminal of M2 is used. The transistor parameters for the bipolar transistors are: β = 100, VBE (on) = VEB(on) = 0.7 V, and VA = 100 V. The transistor parameters for M1 and M2 are: Kn = 0.15 mA/V2, VT N = 0.8 V, λ = 0.01 V-1 . The improved differential amplifier is shown in Figure Q2. (a) Determine the quiescent voltages and currents of M1 and M2 when v1 = v2 = 0. (4 marks) (b) Design the value of resistor RE such that IQ = 0.1 mA. (2 marks) (c) Determine the maximum and minimum common-mode voltages that can be applied to v1 and v2. (3 marks) (d) Determine the percentage change in IQ when the common-mode voltage applied to v1 and v2 changes from the maximum to the minimum value obtained in part (c). (5 marks) (c) Define vd = v1 - v2, determine the differential-mode voltage gain Ad of the improved differential amplifier.
Solution
0 0

Figure P7.33 shows a discrete-circuit amplifier. The input signal vsig is coupled to the gate through a very large capacitor (shown as infinite). The transistor source is connected to ground at signal frequencies via a very large capacitor (shown as infinite). The output voltage signal that develops at the drain is coupled to a load resistance via a very large capacitor (shown as infinite). All capacitors behave as short circuits for signals and as open circuits for dc. (a) If the transistor has Vt = 1 V, and kn = 4 mA/V2 , verify that the bias circuit establishes VGS = 1.5 V, ID = 0.5 mA, and VD = +7.0 V. That is, assume these values, and verify that they are consistent with the values of the circuit components and the device parameters. (b) Find gm and ro if VA = 100 V. (c) Draw a complete small-signal equivalent circuit for the amplifier, assuming all capacitors behave as short circuits at signal frequencies. (d) Find Rin, vgs/vsig, vo/vgs, and vo/vsig.

Figure P7.33 shows a discrete-circuit amplifier. The input signal vsig is coupled to the gate through a very large capacitor (shown as infinite). The transistor source is connected to ground at signal frequencies via a very large capacitor (shown as infinite). The output voltage signal that develops at the drain is coupled to a load resistance via a very large capacitor (shown as infinite). All capacitors behave as short circuits for signals and as open circuits for dc. (a) If the transistor has Vt = 1 V, and kn = 4 mA/V2 , verify that the bias circuit establishes VGS = 1.5 V, ID = 0.5 mA, and VD = +7.0 V. That is, assume these values, and verify that they are consistent with the values of the circuit components and the device parameters. (b) Find gm and ro if VA = 100 V. (c) Draw a complete small-signal equivalent circuit for the amplifier, assuming all capacitors behave as short circuits at signal frequencies. (d) Find Rin, vgs/vsig, vo/vgs, and vo/vsig.
Solution
3 0

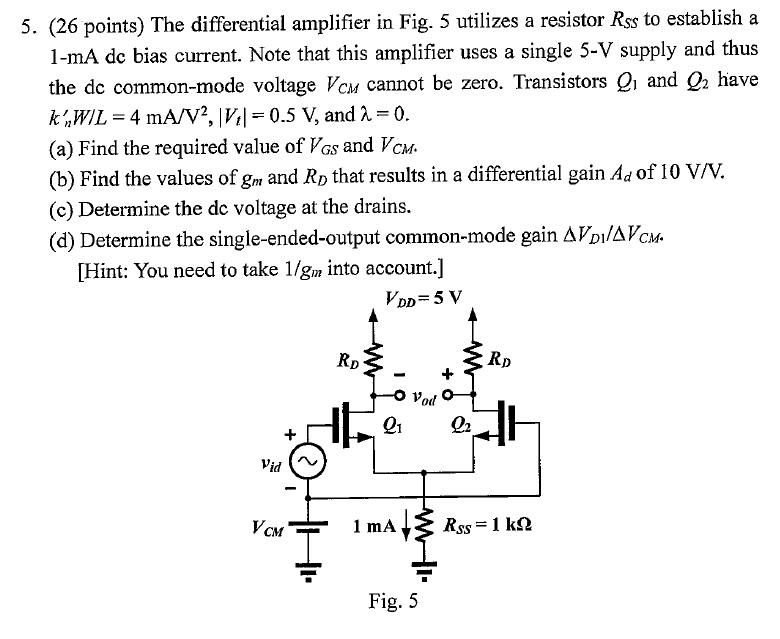

(26 points) The differential amplifier in Fig. 5 utilizes a resistor RSS to establish a 1−mA dc bias current. Note that this amplifier uses a single 5-V supply and thus the dc common-mode voltage VCM cannot be zero. Transistors Q1 and Q2 have kn′W/L = 4 mA/V2, |Vt| = 0.5 V, and λ = 0. (a) Find the required value of VGS and VCM. (b) Find the values of gm and RD that results in a differential gain Ad of 10 V/V. (c) Determine the dc voltage at the drains. (d) Determine the single-ended-output common-mode gain ΔVD1 /ΔVCM. [Hint: You need to take 1/gm into account. ] Fig. 5
