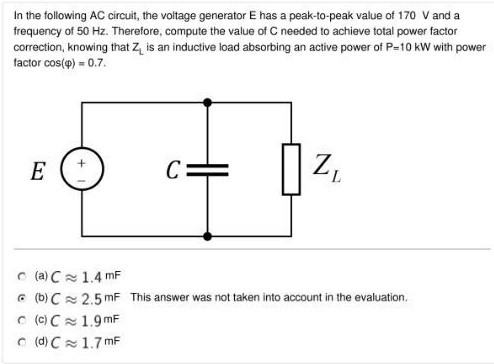

In the following AC circuit, the voltage generator E has a peak-to-peak value of 170 V and a frequency of 50 Hz. Therefore, compute the value of C needed to achieve total power factor correction, knowing that ZL is an inductive load absorbing an active power of P = 10 kW with power factor cos(φ) = 0.7 (a) C ≈ 1.4 mF c. (b) C ≈ 2.5 mF (c) C ≈ 1.9 mF o (d) C ≈ 1.7 mF
![For the circuit shown in Figure 1, NMOS device M1 has the following properties: kn’(W/L) = 180 μA/V2, VT0 = 2 V, λ = 0.02 V-1, γ = 0.4 V1/2, 2ϕF = 0.7 V, and ID = 10 mA. Note that capacitor Cbig is a DC blocking cap, i.e., Cbig is an open at DC and a short at all other frequencies. Figure 1. Circuit for Problem 1. a) Determine the numerical value of bias voltage Vbias which is needed to achieve a drain current of ID = 10 mA. b) Draw the small-signal equivalent circuit. c) Analyze the small-signal circuit to find Rin, Rout, and Av = Vout/Vin. Find the analytic expression for each quantity first, before determining the numerical answers. d) Recall that gmb/gm = χ. Determine the numerical value of χ for this problem. [Note that this part has nothing to do with parts (b) and (c).] e) What is the threshold voltage of device M1? [Note that this part has nothing to do with parts (b) and (c).] Show your work, list all numerical values in proper engineering notation format with appropriate units and with at least two decimal places of precision.](https://www.doubtrix.com/js/ckeditor/filemanager/connectors/php/editor/1701531864-Rjgbdog0ehds.png)
