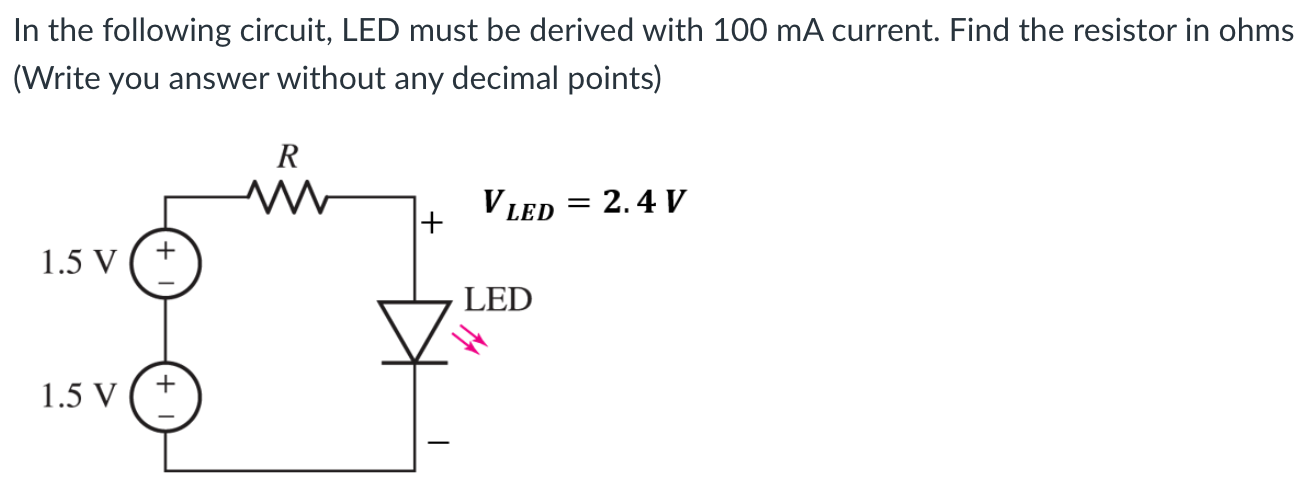

In the following circuit, LED must be derived with 100 mA current. Find the resistor in ohms (Write you answer without any decimal points)

In the following circuit, LED must be derived with 100 mA current. Find the resistor in ohms (Write you answer without any decimal points)

Image text
In the following circuit, LED must be derived with 100 m A current. Find the resistor in ohms (Write you answer without any decimal points)

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

10a) (15 Points) In the following circuit, an NMOS transistor is used to switch the current to the LED. Assume the following parameters: Microcontroller: vO = 4.6 V iOH < −5 mA and vOL = 0.4 V, iOL < 8 mA LED: vf = 2.0 V, PLED−max = 200 mW Desired LED current 100 mA Transistor: vT = 1.0 V, RDS(ON) = 0.5 Ω, iD−max = 500 mA a. When the output of the microcontroller is low, what is the operating region of the transistor? b. When the output of the microcontroller is high, what is the operating region of the transistor? c. With the microcontroller output high, and the transistor in the ohmic region, what value of R results in an on-state LED current of 100 mA? d. What standard value of resistor (Table is on page 33 of the text) comes closest to the desired LED current? 10b) Suppose we rearrange the NMOS circuit in problem 10 as shown. Using the same parameters as in the previous problem, answer the following: a. When the output of the microcontroller is low, what is the operating region of the transistor? b. Suppose that when the output of the microcontroller is high, there is 100 mA current through the LED with the same resistor as found in problem 10a. What is the source voltage relative to ground? What is the gate-source voltage? c. Do you expect this arrangement to work for controlling the LED? Explain. 10c) (15 Points) In this problem, the NMOS transistor in problem 10b has been replaced with a PMOS transistor as shown. Assume all the parameters are the same, noting that the gate must be the threshold voltage below the source to get out of cutoff. a. When the output of the microcontroller is high, what is the operating region of the transistor? b. When the output is low, what is the operating region of the transistor? c. Does this arrangement to work for controlling the LED? Explain.10a) (15 Points) In the following circuit, an NMOS transistor is used to switch the current to the LED. Assume the following parameters: Microcontroller: vO = 4.6 V iOH < −5 mA and vOL = 0.4 V, iOL < 8 mA LED: vf = 2.0 V, PLED−max = 200 mW Desired LED current 100 mA Transistor: vT = 1.0 V, RDS(ON) = 0.5 Ω, iD−max = 500 mA a. When the output of the microcontroller is low, what is the operating region of the transistor? b. When the output of the microcontroller is high, what is the operating region of the transistor? c. With the microcontroller output high, and the transistor in the ohmic region, what value of R results in an on-state LED current of 100 mA? d. What standard value of resistor (Table is on page 33 of the text) comes closest to the desired LED current? 10b) Suppose we rearrange the NMOS circuit in problem 10 as shown. Using the same parameters as in the previous problem, answer the following: a. When the output of the microcontroller is low, what is the operating region of the transistor? b. Suppose that when the output of the microcontroller is high, there is 100 mA current through the LED with the same resistor as found in problem 10a. What is the source voltage relative to ground? What is the gate-source voltage? c. Do you expect this arrangement to work for controlling the LED? Explain. 10c) (15 Points) In this problem, the NMOS transistor in problem 10b has been replaced with a PMOS transistor as shown. Assume all the parameters are the same, noting that the gate must be the threshold voltage below the source to get out of cutoff. a. When the output of the microcontroller is high, what is the operating region of the transistor? b. When the output is low, what is the operating region of the transistor? c. Does this arrangement to work for controlling the LED? Explain.10a) (15 Points) In the following circuit, an NMOS transistor is used to switch the current to the LED. Assume the following parameters: Microcontroller: vO = 4.6 V iOH < −5 mA and vOL = 0.4 V, iOL < 8 mA LED: vf = 2.0 V, PLED−max = 200 mW Desired LED current 100 mA Transistor: vT = 1.0 V, RDS(ON) = 0.5 Ω, iD−max = 500 mA a. When the output of the microcontroller is low, what is the operating region of the transistor? b. When the output of the microcontroller is high, what is the operating region of the transistor? c. With the microcontroller output high, and the transistor in the ohmic region, what value of R results in an on-state LED current of 100 mA? d. What standard value of resistor (Table is on page 33 of the text) comes closest to the desired LED current? 10b) Suppose we rearrange the NMOS circuit in problem 10 as shown. Using the same parameters as in the previous problem, answer the following: a. When the output of the microcontroller is low, what is the operating region of the transistor? b. Suppose that when the output of the microcontroller is high, there is 100 mA current through the LED with the same resistor as found in problem 10a. What is the source voltage relative to ground? What is the gate-source voltage? c. Do you expect this arrangement to work for controlling the LED? Explain. 10c) (15 Points) In this problem, the NMOS transistor in problem 10b has been replaced with a PMOS transistor as shown. Assume all the parameters are the same, noting that the gate must be the threshold voltage below the source to get out of cutoff. a. When the output of the microcontroller is high, what is the operating region of the transistor? b. When the output is low, what is the operating region of the transistor? c. Does this arrangement to work for controlling the LED? Explain.
Solution
0 0

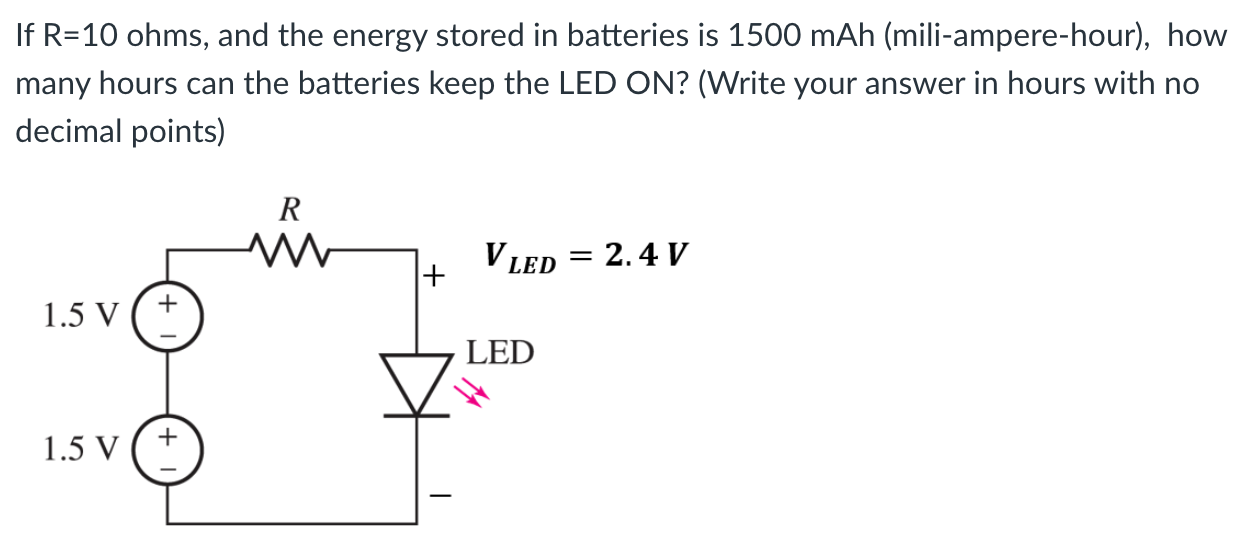

If R = 10 ohms, and the energy stored in batteries is 1500 mAh (mili-ampere-hour), how many hours can the batteries keep the LED ON? (Write your answer in hours with no decimal points)
