Question

Notify Me Bookmark

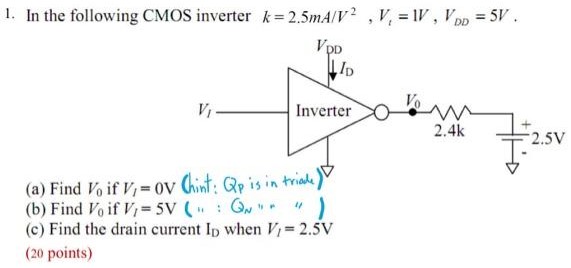

In the following CMOS inverter k = 2.5 mA/V2, Vt = 1 V, VDD = 5 V. (a) Find V0 if Vl = 0 V (b) Find V0 if Vl = 5 V (c) Find the drain current ID when VI = 2.5 V (20 points)

Image text

In the following CMOS inverter $k = 2.5 m A / V^{2}, V_{t} = 1 V, V_{D D} = 5 V$ . (a) Find $V_{0}$ if $V_{l} = 0 V$ (hint: $Q_{p}$ is in triade) (b) Find $V_{0}$ if $V_{l} = 5 V (": Q_{N} *$ " $^{'})$ (c) Find the drain current $I_{D}$ when $V_{l} = 2.5 V$ (20 points)
