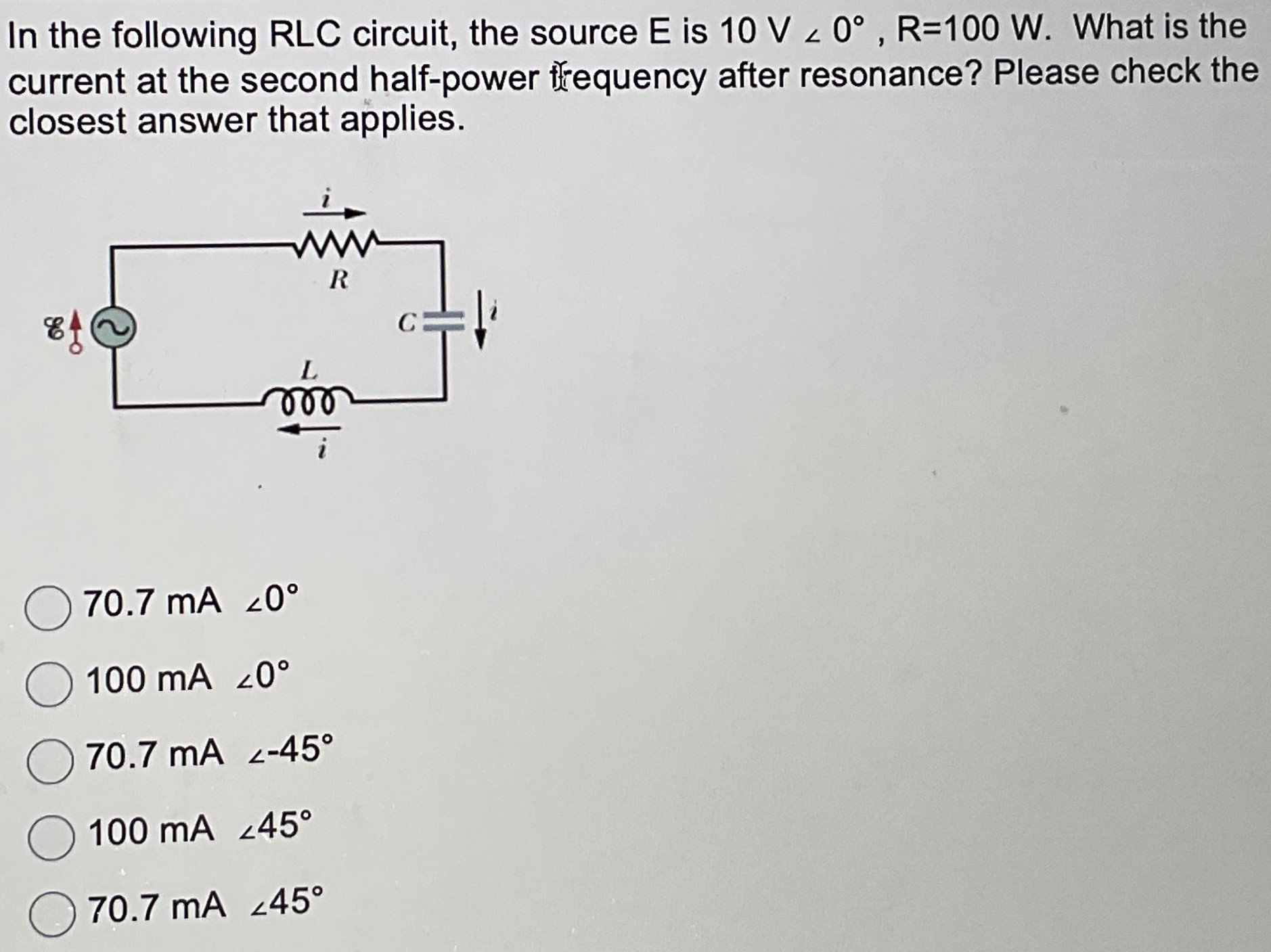

In the following RLC circuit, the source E is 10 V∠0∘, R = 100 W. What is the current at the second half-power frequency after resonance? Please check the closest answer that applies. 70.7 mA∠0∘ 100 mA∠0∘ 70.7 mA < −45∘ 100 mA∠45∘ 70.7 mA∠45∘

In the following RLC circuit, the source E is 10 V∠0∘, R = 100 W. What is the current at the second half-power frequency after resonance? Please check the closest answer that applies. 70.7 mA∠0∘ 100 mA∠0∘ 70.7 mA < −45∘ 100 mA∠45∘ 70.7 mA∠45∘

Image text
In the following RLC circuit, the source E is 10 V ∠ 0 ∘ , R = 100 W . What is the current at the second half-power frequency after resonance? Please check the closest answer that applies. 70.7 m A ∠ 0 ∘ 100 m A ∠ 0 ∘ 70.7 m A < − 45 ∘ 100 m A ∠ 45 ∘ 70.7 m A ∠ 45 ∘
