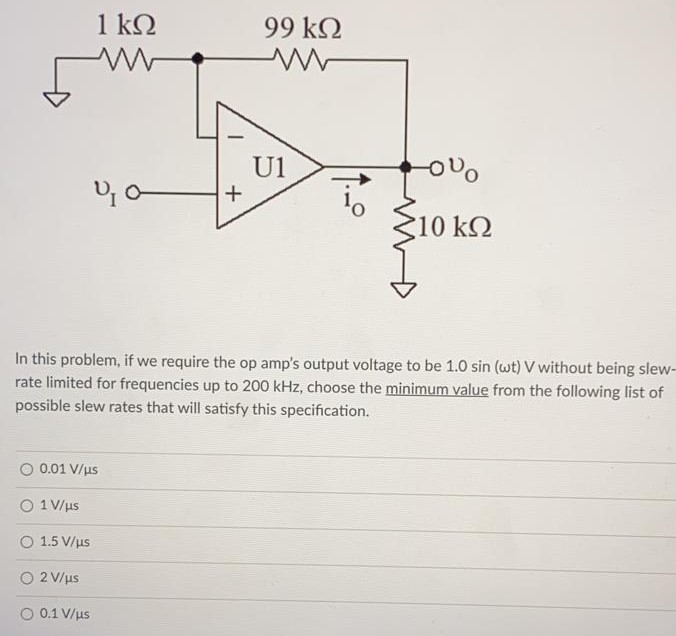

In this problem, if we require the op amp's output voltage to be 1.0sin(ωt) ∨ without being slew-rate limited for frequencies up to 200 kHz, choose the minimum value from the following list of possible slew rates that will satisfy this specification. 0.01 V/μs 1 V/μs 1.5 V/μs 2 V/μs 0.1 V/μs

In this problem, if we require the op amp's output voltage to be 1.0sin(ωt) ∨ without being slew-rate limited for frequencies up to 200 kHz, choose the minimum value from the following list of possible slew rates that will satisfy this specification. 0.01 V/μs 1 V/μs 1.5 V/μs 2 V/μs 0.1 V/μs

Image text
In this problem, if we require the op amp's output voltage to be 1.0sin(ωt) ∨ without being slew-rate limited for frequencies up to 200 kHz, choose the minimum value from the following list of possible slew rates that will satisfy this specification. 0.01 V/μs 1 V/μs 1.5 V/μs 2 V/μs 0.1 V/μs
