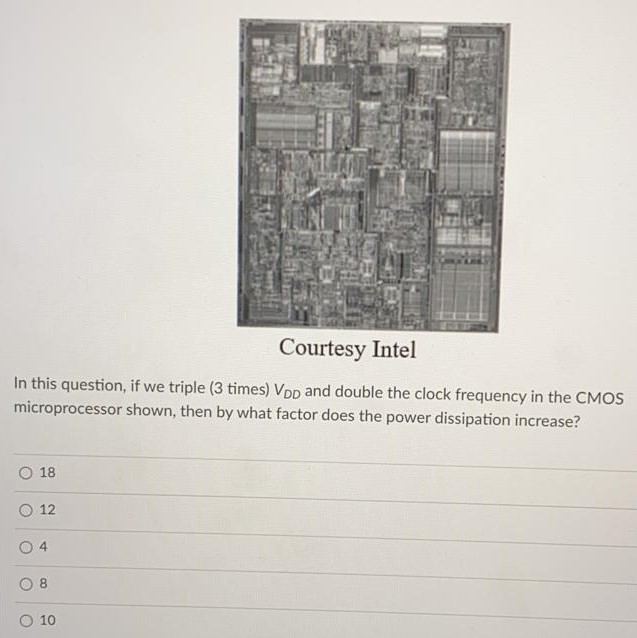

In this question, if we triple (3 times) VDD and double the clock frequency in the CMOS microprocessor shown, then by what factor does the power dissipation increase?

In this question, if we triple (3 times) VDD and double the clock frequency in the CMOS microprocessor shown, then by what factor does the power dissipation increase?

Image text
In this question, if we triple (3 times) VDD and double the clock frequency in the CMOS microprocessor shown, then by what factor does the power dissipation increase?

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

The subthreshold leakage current in an NMOS transistor is given by the following expression: iD = ISe^VGS/nVT. The constant value IS in this expression is proportional to e-Vt/nVT (Do not confuse Vt with VT, Vt is the threshold voltage value and V, is the thermal voltage value). Assume n = 2, if the threshold voltage of an NMOS transistor is reduced by 0.1V, by what factor the static power dissipation increase?
Solution
1 0

This question: Moore’s law predicts that the number of transistors on an integrated circuit doubles every two years. If the microprocessor shown above dissipates 60 watts at VDD = 3 V, then find the value of VDD that will be required for the next-generation microprocessor in 4 years with transistors working at doubled frequency (2 times). Assume the device capacitance remains constant and that we want the power dissipation to remain unchanged at 60 watts. 1.5 V 530 mV 750 mV 1.06 V 864 mV
Solution
0 0

The current Is in the subthreshold conduction Eq. iD = Ise^vGS/nVT is proportional to exp(-Vt/nVT). If the threshold voltage of an NMOS transistor is reduced by 0.1 V, by what factor will the static power dissipation increase? Assume n = 2. Repeat for a reduction in Vt by 0.2 V. What do you conclude about the selection of a value of Vt in process design?
Solution
1 0
