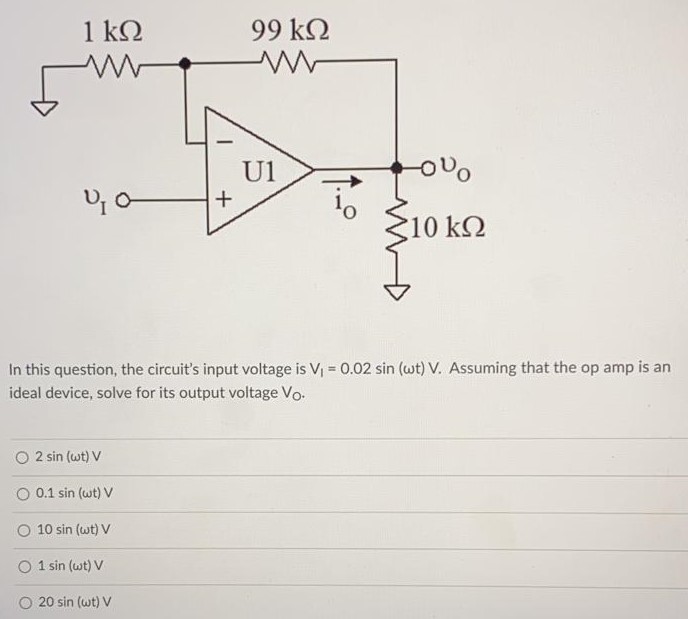

In this question, the circuit’s input voltage is V1 = 0.02sin(ωt) V. Assuming that the op amp is an ideal device, solve for its output voltage VO. 2sin(ωt)V 0.1sin(ωt)V 10sin(ωt)V 1sin(ωt)V 20sin(ωt)V

In this question, the circuit’s input voltage is V1 = 0.02sin(ωt) V. Assuming that the op amp is an ideal device, solve for its output voltage VO. 2sin(ωt)V 0.1sin(ωt)V 10sin(ωt)V 1sin(ωt)V 20sin(ωt)V

Image text
In this question, the circuit’s input voltage is V1 = 0.02sin(ωt) V. Assuming that the op amp is an ideal device, solve for its output voltage VO. 2sin(ωt)V 0.1sin(ωt)V 10sin(ωt)V 1sin(ωt)V 20sin(ωt)V

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

If the circuit's input voltage changes to VI = 0.1sin(ωt) V, assuming that the op amp is an ideal device, solve for its output current io. 2 sin(ωt) mA 0.2 sin(ωt) mA 1.1 sin(ωt) mA 2.2 sin(ωt) mA 1 sin(ωt) mA
Solution
0 0

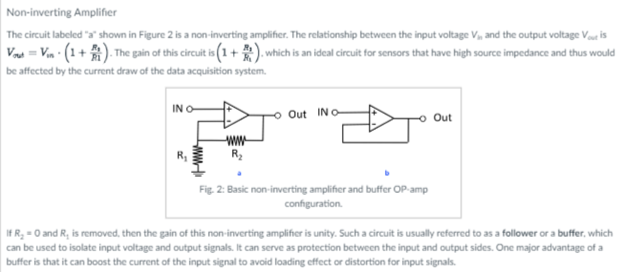

Non-inverting Amplifier The circuit labeled "a" shown in Figure 2 is a non-inverting amplifier. The relationship between the input voltage Vin and the output voltage Vout is Vot = Vin⋅(1 + R2 R1). The gain of this circuit is (1 + R2 R1), which is an ideal circuit for sensors that have high source impedance and thus would be affected by the current draw of the data acquisition system. If R2 = 0 and R1 is removed, then the gain of this non-inverting amplifier is unity. Such a circuit is usually referred to as a follower or a buffer, which can be used to isolate input voltage and output signals. It can serve as protection between the input and output sides. One major advantage of a buffer is that it can boost the current of the input signal to avoid loading effect or distortion for input signals.
Solution
0 0

In the circuit below, the operational amplifier is ideal with the output voltage limitations V+ = 12 V and V− = −12 V. D is an ideal diode. a) Derive the symbolic expression for Vo in terms of VI. You should clearly show every step in your answer. b) For Ri = 12 kΩ, RF = 3 kΩ, RL = 5 kΩ and with the Vi = 8⋅sin⁡(ωt) input voltage signal, calculate V0 and draw V0 voltage waveform with respect to Vi specifying the important values on the axes on the plot(s). Every numerical value on the plot(s) should be explained in detail on your answer sheet. c) What is the function of this circuit? Considering its function, what is the most important drawback (if any) of this circuit? Explain your answer.
