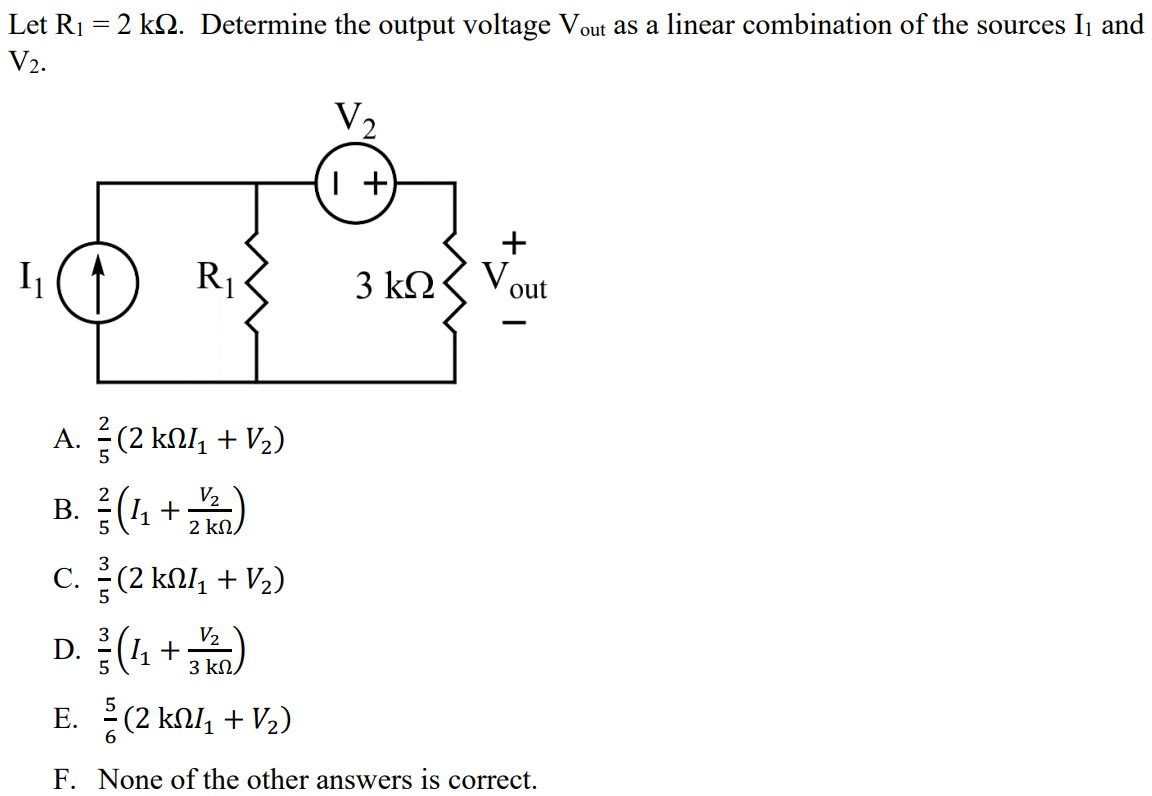

Let R1 = 2 kΩ. Determine the output voltage Vout as a linear combination of the sources I1 and V2. A. 2/5(2 kΩI1 + V2) B. 2/5(I1 + V2/2 kΩ) C. 3/5(2 kΩI1 + V2) D. 3/5(I1 + V2/3 kΩ) E. 5/6(2 kΩI1 + V2) F. None of the other answers is correct.
