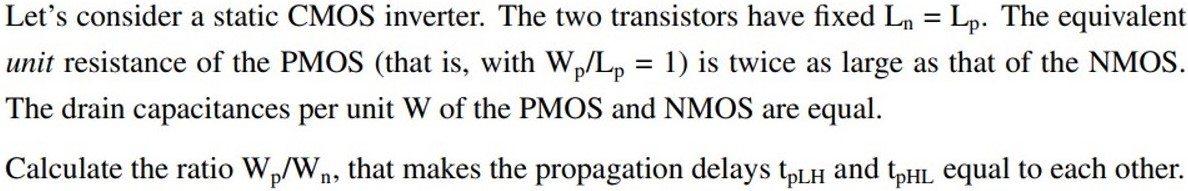

Let’s consider a static CMOS inverter. The two transistors have fixed Ln = Lp. The equivalent unit resistance of the PMOS (that is, with Wp/Lp = 1 ) is twice as large as that of the NMOS. The drain capacitances per unit W of the PMOS and NMOS are equal. Calculate the ratio Wp/Wn, that makes the propagation delays tpLH and tpHL equal to each other.
