Let VDS be the voltage drop from the Drain to the Source of the MOSFET

Question

Notify Me Bookmark

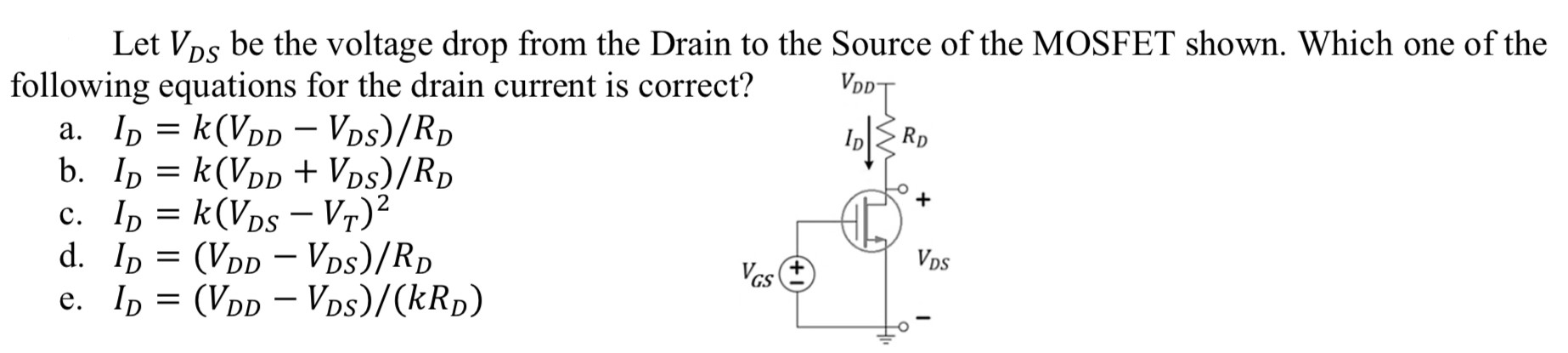

Let VDS be the voltage drop from the Drain to the Source of the MOSFET shown. Which one of the following equations for the drain current is correct? a. ID = k(VDD − VDS)/RD b. ID = k(VDD + VDS)/RD c. ID = k(VDS − VT)2 d. ID = (VDD − VDS)/RD e. ID = (VDD − VDS)/(kRD)

Let VDS be the voltage drop from the Drain to the Source of the MOSFET shown. Which one of the following equations for the drain current is correct? a. ID = k(VDD − VDS)/RD b. ID = k(VDD + VDS)/RD c. ID = k(VDS − VT)2 d. ID = (VDD − VDS)/RD e. ID = (VDD − VDS)/(kRD)

Image text

Let

V_{D S}

be the voltage drop from the Drain to the Source of the MOSFET shown. Which one of the following equations for the drain current is correct? a.

I_{D} = k (V_{D D} - V_{D S}) / R_{D}

b.

I_{D} = k (V_{D D} + V_{D S}) / R_{D}

c.

I_{D} = k {(V_{D S} - V_{T})}^{2}

d.

I_{D} = (V_{D D} - V_{D S}) / R_{D}

e.

I_{D} = (V_{D D} - V_{D S}) / (k R_{D})
