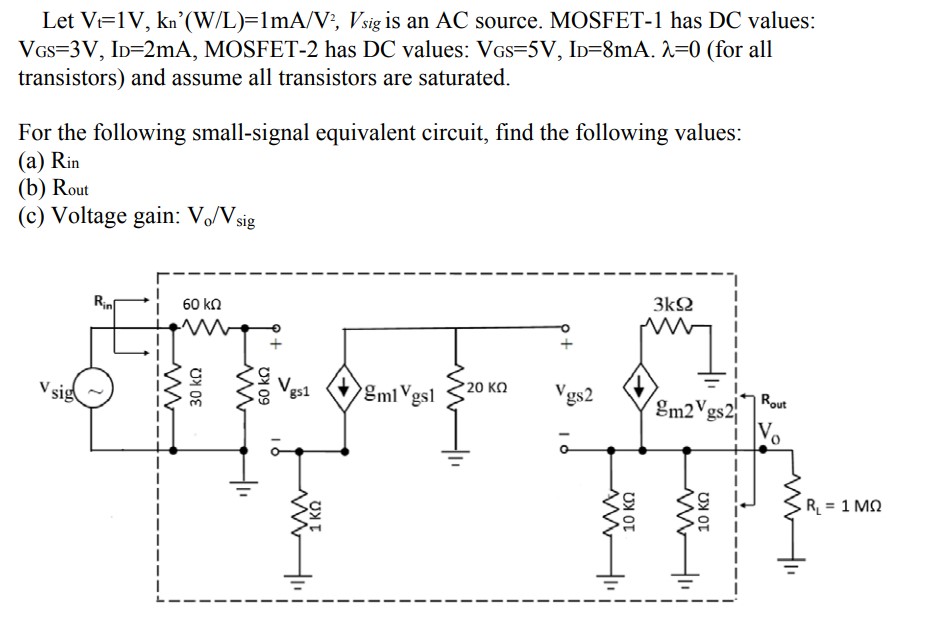

Let Vt = 1 V, kn’(W/L) = 1 mA/V2, Vsig is an AC source. MOSFET-1 has DC values: VGS = 3 V, ID = 2 mA, MOSFET-2 has DC values: VGS = 5 V, IDD = 8 mA. λ = 0 (for all transistors) and assume all transistors are saturated. For the following small-signal equivalent circuit, find the following values: (a) Rin (b) Rout (c) Voltage gain: Vo/Vsig

Let Vt = 1 V, kn’(W/L) = 1 mA/V2, Vsig is an AC source. MOSFET-1 has DC values: VGS = 3 V, ID = 2 mA, MOSFET-2 has DC values: VGS = 5 V, IDD = 8 mA. λ = 0 (for all transistors) and assume all transistors are saturated. For the following small-signal equivalent circuit, find the following values: (a) Rin (b) Rout (c) Voltage gain: Vo/Vsig

Image text
Let Vt = 1 V, kn’(W/L) = 1 mA/V2, Vsig is an AC source. MOSFET-1 has DC values: VGS = 3 V, ID = 2 mA, MOSFET-2 has DC values: VGS = 5 V, IDD = 8 mA. λ = 0 (for all transistors) and assume all transistors are saturated. For the following small-signal equivalent circuit, find the following values: (a) Rin (b) Rout (c) Voltage gain: Vo/Vsig

Detailed Answer

1 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (1)

Similar/Related Questions

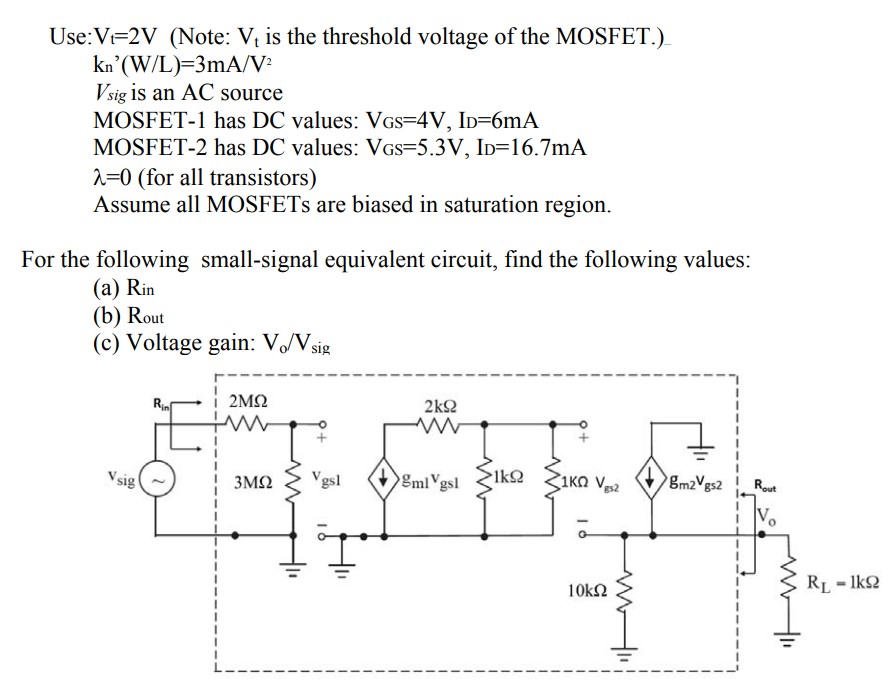

Use: Vt = 2 V (Note: Vt is the threshold voltage of the MOSFET.) kn’(W/L) = 3 mA/V2 Vsig is an AC source MOSFET-1 has DC values: VGS = 4 V,ID = 6 mA MOSFET-2 has DC values: VGS = 5.3 V, ID = 16.7 mA λ = 0 (for all transistors) Assume all MOSFETs are biased in saturation region. For the following small-signal equivalent circuit, find the following values: (a) Rin (b) Rout (c) Voltage gain: Vo/Vsig

Solution
1 0

Figure P7.33 shows a discrete-circuit amplifier. The input signal vsig is coupled to the gate through a very large capacitor (shown as infinite). The transistor source is connected to ground at signal frequencies via a very large capacitor (shown as infinite). The output voltage signal that develops at the drain is coupled to a load resistance via a very large capacitor (shown as infinite). All capacitors behave as short circuits for signals and as open circuits for dc. (a) If the transistor has Vt = 1 V, and kn = 4 mA/V2 , verify that the bias circuit establishes VGS = 1.5 V, ID = 0.5 mA, and VD = +7.0 V. That is, assume these values, and verify that they are consistent with the values of the circuit components and the device parameters. (b) Find gm and ro if VA = 100 V. (c) Draw a complete small-signal equivalent circuit for the amplifier, assuming all capacitors behave as short circuits at signal frequencies. (d) Find Rin, vgs/vsig, vo/vgs, and vo/vsig.

Figure P7.33 shows a discrete-circuit amplifier. The input signal vsig is coupled to the gate through a very large capacitor (shown as infinite). The transistor source is connected to ground at signal frequencies via a very large capacitor (shown as infinite). The output voltage signal that develops at the drain is coupled to a load resistance via a very large capacitor (shown as infinite). All capacitors behave as short circuits for signals and as open circuits for dc. (a) If the transistor has Vt = 1 V, and kn = 4 mA/V2 , verify that the bias circuit establishes VGS = 1.5 V, ID = 0.5 mA, and VD = +7.0 V. That is, assume these values, and verify that they are consistent with the values of the circuit components and the device parameters. (b) Find gm and ro if VA = 100 V. (c) Draw a complete small-signal equivalent circuit for the amplifier, assuming all capacitors behave as short circuits at signal frequencies. (d) Find Rin, vgs/vsig, vo/vgs, and vo/vsig.
Solution
3 0

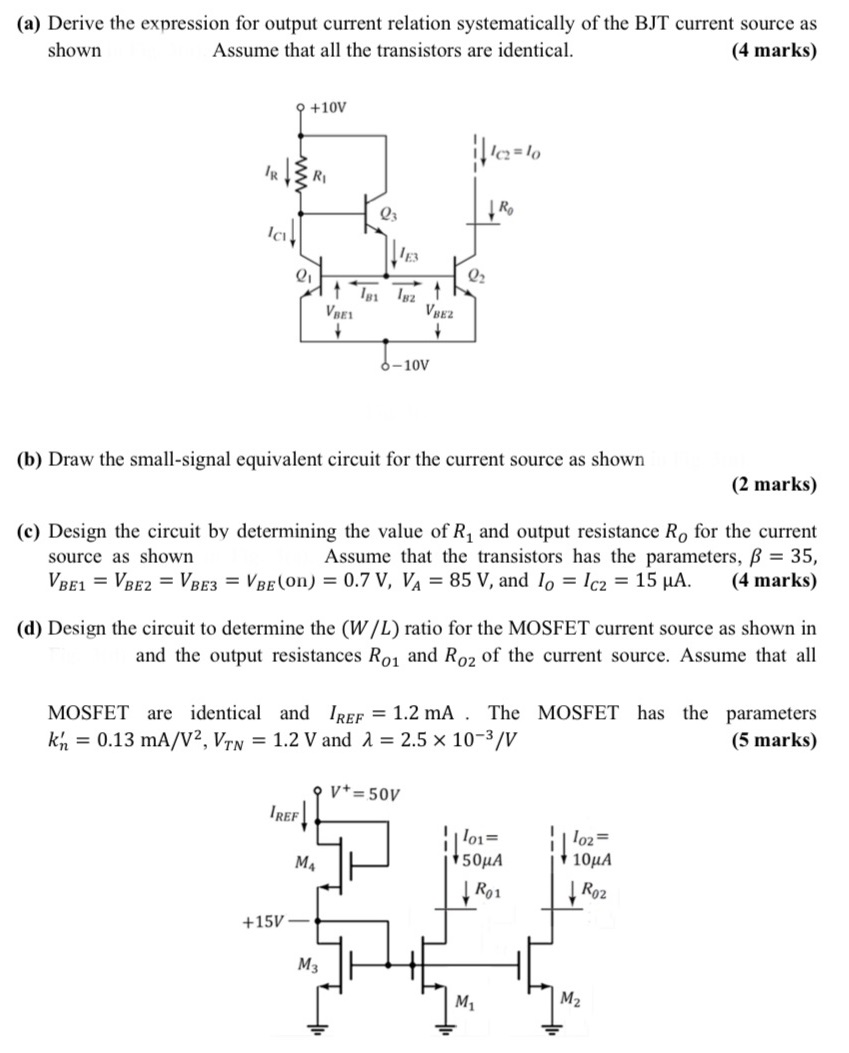

(a) Derive the expression for output current relation systematically of the BJT current source as shown Assume that all the transistors are identical. (4 marks) (b) Draw the small-signal equivalent circuit for the current source as shown (2 marks) (c) Design the circuit by determining the value of R1 and output resistance RO for the current source as shown Assume that the transistors has the parameters, β = 35, VBE1 = VBE2 = VBE3 = VBE( on ) = 0.7 V, VA = 85 V, and IO = IC2 = 15 μA. (4 marks) (d) Design the circuit to determine the (W/L) ratio for the MOSFET current source as shown in and the output resistances RO1 and RO2 of the current source. Assume that all MOSFET are identical and IREF = 1.2 mA. The MOSFET has the parameters kn′ = 0.13 mA/V2, VTN = 1.2 V and λ = 2.5×10−3 /V (5 marks)
