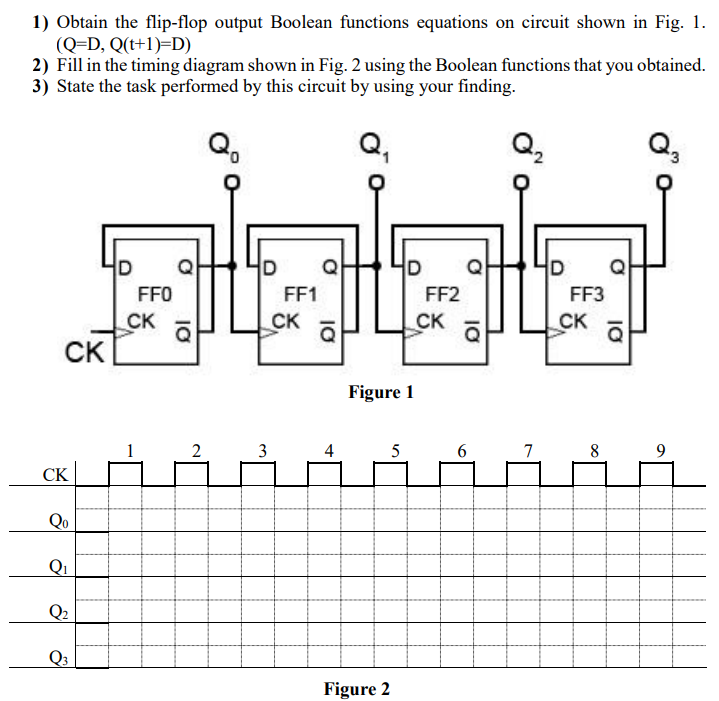

Obtain the flip-flop output Boolean functions equations on circuit shown in Fig. 1. (Q = D, Q(t+1) = D)Fill in the timing diagram shown in Fig. 2 using the Boolean functions that you obtained. State the task performed by this circuit by using your finding. Figure 1 Figure 2

Obtain the flip-flop output Boolean functions equations on circuit shown in Fig. 1. (Q = D, Q(t+1) = D)Fill in the timing diagram shown in Fig. 2 using the Boolean functions that you obtained. State the task performed by this circuit by using your finding. Figure 1 Figure 2

Image text
  1. Obtain the flip-flop output Boolean functions equations on circuit shown in Fig. 1. ( Q = D , Q ( t + 1 ) = D )
  2. Fill in the timing diagram shown in Fig. 2 using the Boolean functions that you obtained.
  3. State the task performed by this circuit by using your finding. Figure 1 Figure 2
