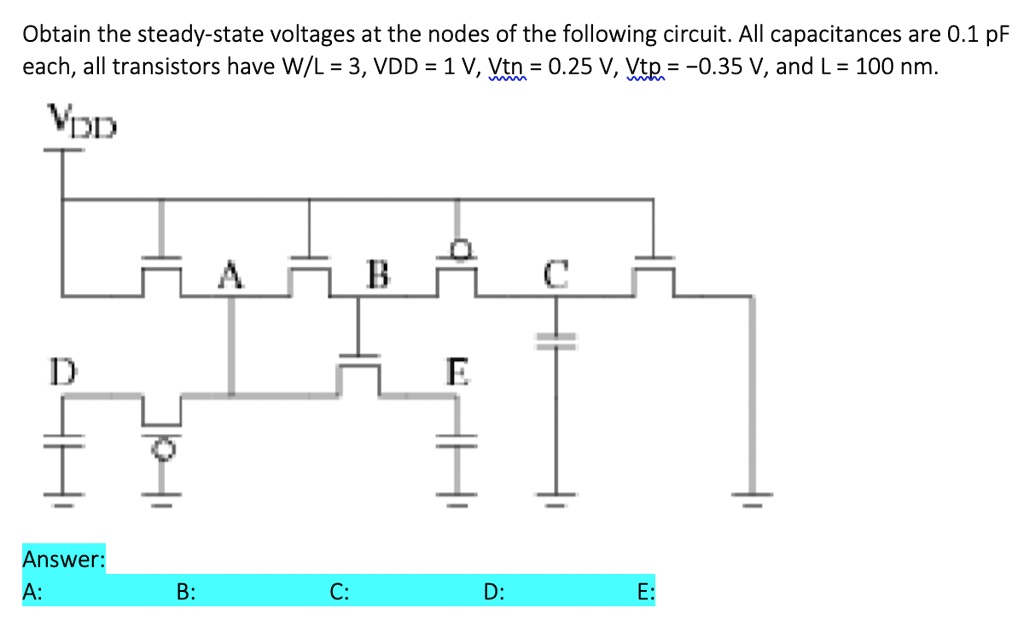

Obtain the steady-state voltages at the nodes of the following circuit. All capacitances are 0.1pF each, all transistors have W/L = 3, VDD = 1 , Vtn = 0.25 V, Vtp = −0.35 V, and L = 100 nm.

Obtain the steady-state voltages at the nodes of the following circuit. All capacitances are 0.1pF each, all transistors have W/L = 3, VDD = 1 , Vtn = 0.25 V, Vtp = −0.35 V, and L = 100 nm.

Image text
Obtain the steady-state voltages at the nodes of the following circuit. All capacitances are 0.1pF each, all transistors have W/L = 3, VDD = 1 , Vtn = 0.25 V, Vtp = −0.35 V, and L = 100 nm.

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

For the gate shown in the Figure (a) calculate the internal capacitances at nodes X and Y. (b) calculate the propagation delay tpLH in the case when the input A changes from Vdd to 0 (step input) and the other inputs are B = Vdd and C = 0. (c) calculate the propagation delay tpHL in the case when the input A changes from 0 to Vdd (step input) and the other inputs are B = Vdd and C = 0. In the calculation of the delays you should consider the effect of internal capacitances. Use the following parameters: Vtn = 0.4 V, Vtp = −0.4 V, VDD = 2.5 V. All transistors have minimum length L = 0.25 μm. Assume W = 0.5 μm. Use the following values for the transistor capacitances: Cd = 1 fF/μm. Use the following values for the transistor resistances: Rsq,n = 13 kΩ and : Rsq.p = 31 kΩ.

Solution
0 0

A differential amplifier circuit is shown in the figure below. In the circuit, VDD = +10 V, the current I provided by the current source is 2 mA and the internal source resistance is RSS = 50 kΩ. The transistor parameters are as follows: - All NMOS: μnCox = 100 μA/ V2, W/L = 10 μm/1.6 μm, Vtn = 0.7V, λnL = 0.10 μm/V - All PMOS: μpCox = 50 μA/V2, W/L = 10μm/1.6μm, Vtp = −0.8 V, λpL = 0.05 μm/V (1) Calculate the DC output voltage VO (ignore the channel length modulation effect of all transistors). (2) Under the differential mode operation (i.e., v1 = 1/2vd, v2 = -1/2vd ), calculate the differential mode small signal voltage gain Ad = vo/vd (include the channel length modulation effect of all transistors). Hint: please pay special attention to the connections of Q3 and Q4 transistors.
Solution
2 0

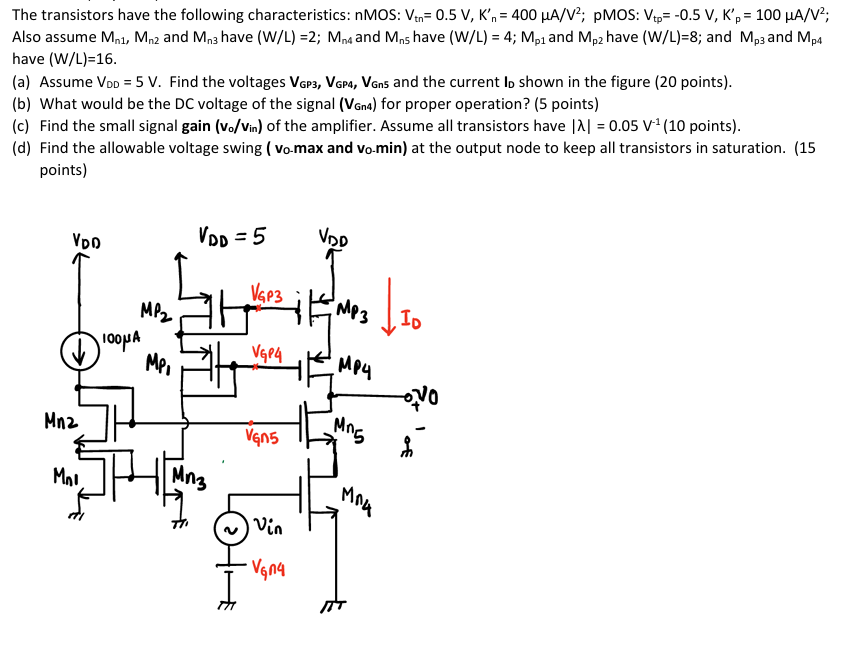

The transistors have the following characteristics: nMOS: Vtn = 0.5 V, Kn′ = 400 μA/V2; pMOS: Vtp = −0.5 V, Kp′ = 100 μA/V2; Also assume Mn1, Mn2 and Mn3 have (W/L) = 2; Mn4 and Mn5 have (W/L) = 4; Mp1 and Mp2 have (W/L) = 8; and Mp3 and Mp4 have (W/L) = 16. (a) Assume VDD = 5 V. Find the voltages VGP3, VGP4, VGn5 and the current ID shown in the figure (20 points). (b) What would be the DC voltage of the signal (VGn4) for proper operation? (5 points) (c) Find the small signal gain (vo/vin) of the amplifier. Assume all transistors have |λ| = 0.05 V−1 ( 10 points). (d) Find the allowable voltage swing (vo-max and vo-min) at the output node to keep all transistors in saturation. (15 points)
