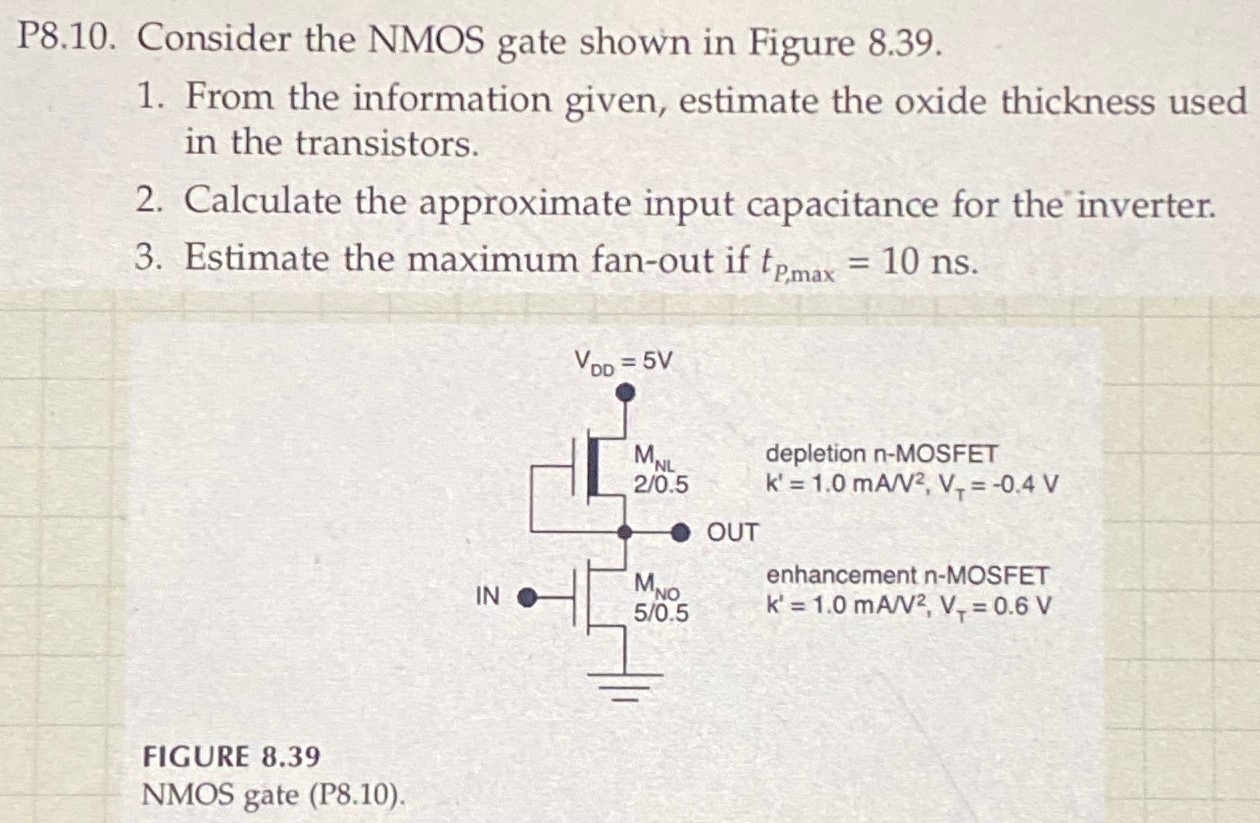

P8.10. Consider the NMOS gate shown in Figure 8.39. From the information given, estimate the oxide thickness used in the transistors. Calculate the approximate input capacitance for the inverter. Estimate the maximum fan-out if tP,max = 10 ns. FIGURE 8.39 NMOS gate (P8.10).

P8.10. Consider the NMOS gate shown in Figure 8.39. From the information given, estimate the oxide thickness used in the transistors. Calculate the approximate input capacitance for the inverter. Estimate the maximum fan-out if tP,max = 10 ns. FIGURE 8.39 NMOS gate (P8.10).

Image text
P8.10. Consider the NMOS gate shown in Figure 8.39.
  1. From the information given, estimate the oxide thickness used in the transistors.
  2. Calculate the approximate input capacitance for the inverter.
  3. Estimate the maximum fan-out if t P , max = 10 n s . FIGURE 8.39 NMOS gate (P8.10).

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

Current Mirrors (35 points) This problem introduces current mirrors, which will be covered in more details in future lectures. Consider the circuit shown below (Figure 2). (W/L)1 = 1, (W/L)2 = 5, Rref = 50 kΩ, ignore channel length modulation unless otherwise stated. Assume L1 = L2 = 1 μm. Figure 2 a) (5 points) Assume RL = 10 kΩ. Calculate IL, the current flowing through RL. What is the current mirroring ratio ( IL over Iref , where Iref is the current through Rref )? We want the current mirror to provide a load-independent current as much as possible, so check that M2 is in saturation. b) (5 points) Determine the maximum RL and minimum VOut such that the current mirror still functions with the same current mirroring ratio you calculated in part a). Hint: for the current mirror to function as desired, transistor saturation should be maintained. c) (5 points) Channel length modulation introduces load-dependent errors in the mirroring ratio. Using λ = 0.1 V−1 for L = 1 μm, estimate the percentage error in the mirroring ratio. Here, set RL to its maximum value you got in part b ), and assume that we want the same IL as in parts a) and b). Hint: what should be the new VX and Iref ? d) (4 points) Compute the output resistance, Rout, , looking into the drain of M2. Use λ = 0.1 V−1 and assume the same IL as in parts a) through c). e) (5 points) Now consider redesigning the previous current mirror with source-degenerated transistors as shown in Figure 3. Ignore channel length modulation and body effect ( Assume bulk is tied to source). Transistor sizes remain the same, (WL)1 = 1 and (WL)2 = 5. This circuit has been designed to have the same Iref as in part a). What should the value of Rs2 be if we want the same current mirroring ratio as in a)? f) (5 points) Similarly to part b, determine the maximum RL and minimum VOut such that the current mirror still functions with the same current mirroring ratio as in part e). g) (4 points) Now compute the output resistance, Rout , looking into the drain of M2 (using λ = 0.1 V−1 ). Assume IL as used in parts e) and f ). h) (2 points) Comparing the minimum output voltage and the output resistance of these two current mirrors, comment on the advantages and disadvantages of using source degeneration in a current mirror. Figure 3 Current Mirrors (35 points) This problem introduces current mirrors, which will be covered in more details in future lectures. Consider the circuit shown below (Figure 2). (W/L)1 = 1, (W/L)2 = 5, Rref = 50 kΩ, ignore channel length modulation unless otherwise stated. Assume L1 = L2 = 1 μm. Figure 2 a) (5 points) Assume RL = 10 kΩ. Calculate IL, the current flowing through RL. What is the current mirroring ratio ( IL over Iref , where Iref is the current through Rref )? We want the current mirror to provide a load-independent current as much as possible, so check that M2 is in saturation. b) (5 points) Determine the maximum RL and minimum VOut such that the current mirror still functions with the same current mirroring ratio you calculated in part a). Hint: for the current mirror to function as desired, transistor saturation should be maintained. c) (5 points) Channel length modulation introduces load-dependent errors in the mirroring ratio. Using λ = 0.1 V−1 for L = 1 μm, estimate the percentage error in the mirroring ratio. Here, set RL to its maximum value you got in part b ), and assume that we want the same IL as in parts a) and b). Hint: what should be the new VX and Iref ? d) (4 points) Compute the output resistance, Rout, , looking into the drain of M2. Use λ = 0.1 V−1 and assume the same IL as in parts a) through c). e) (5 points) Now consider redesigning the previous current mirror with source-degenerated transistors as shown in Figure 3. Ignore channel length modulation and body effect ( Assume bulk is tied to source). Transistor sizes remain the same, (WL)1 = 1 and (WL)2 = 5. This circuit has been designed to have the same Iref as in part a). What should the value of Rs2 be if we want the same current mirroring ratio as in a)? f) (5 points) Similarly to part b, determine the maximum RL and minimum VOut such that the current mirror still functions with the same current mirroring ratio as in part e). g) (4 points) Now compute the output resistance, Rout , looking into the drain of M2 (using λ = 0.1 V−1 ). Assume IL as used in parts e) and f ). h) (2 points) Comparing the minimum output voltage and the output resistance of these two current mirrors, comment on the advantages and disadvantages of using source degeneration in a current mirror. Figure 3

Solution
0 0

A resistively loaded PMOS inverter circuit is shown in figure Q1. The circuit is implemented with the CD4007UBE PMOS. This is essentially the same circuit as the NMOS inverting logic gate you used in Task 3, but with a PMOS transistor instead. The load resistor RD = 6 kΩ, and the supply voltage is VDD = +5 V. The transistor parameters are µpCox = 55 µA/V2, W = 60 µm, L = 10 µm, and Vt,p = -1. For the purposes of this question ignore the channel length modulation effect, i.e. take λ = 0. a) Calculate VOUT as VIN varies from +5 V to 0 V, with 1 V steps, i.e. for 5 V, 4 V, 3 V, 2 V, 1 V and 0 V. b) What is the maximum DC power dissipated by this circuit? Figure Q.1. Resistive load PMOS inverter circuit
Solution
1 0

Part 2: Analysis of a CMOS Inverter's Dynamic Behavior Objective: Perform hand calculations of switching delays through a CMOS inverter. Consider a CMOS inverter such as the one shown in Figure 2. The delay times, trise and tsunv , will be determined by the current-driving capacities of the PMOS and NMOS transistors, respectively, as well as the magnitude of the load capacitance CL. Figure 2. CMOS Inverter The rise time trice for a CMOS inverter can be calculated as: tnse = CLΔV IDAvg , where IDP wg is the average of the PMOS currents at the 10% point of the low-to-high transition (Vout = Vtow ) and at the 90% point (Voor = Vsow ). Likewise, the fall time tfall for a CMOS inverter can be calculated as: tsanl = CLΔV IDavg , where ID timg is the average of the NMOS currents at the 90% of the high-to-low transition (Vout = VSop ) and at the 10% point (Vous = V10%). ⇒ Calculate the expected rise and fall times, trise and tfall . Use LCM equations with a load capacitance value of 25 pF. Use VT0 = 0.4 V, kn′ = 432 μA/V2, |2ϕϝ| = 0.88 V, γ = 0.2 V1 /2, λ = 0 V−1, WN = 2 μm, and LN = 100 nm for the NMOS device. Use Vpv = −0.4 V, kp′ = 108 μA/V2, |2ϕF| = 0.88 V, γ = 0.2 V1 /2, λ = 0 V−1, Wp = 8 μm, and Lp = 100 nm for the PMOS device.

Solution
