Problem 1: Determine the region of operation (e. g. , Cutoff, Linear, Blown-up, Triode, Ohmic, Resistive, Saturation, Forward-Active, Reverse-Active, etc. ) for each transistor below. For the NMOS and PMOS transistors, assume: L = 0.1 μm, W = 1.2 μm, |Vt0| = 0.4 V, |γ| = 0.4 V0.5, ϕf = 0.3 V, Ec = 1.5×106 V/m, and μCOX = 200 μA/V2.

Problem 1: Determine the region of operation (e. g. , Cutoff, Linear, Blown-up, Triode, Ohmic, Resistive, Saturation, Forward-Active, Reverse-Active, etc. ) for each transistor below. For the NMOS and PMOS transistors, assume: L = 0.1 μm, W = 1.2 μm, |Vt0| = 0.4 V, |γ| = 0.4 V0.5, ϕf = 0.3 V, Ec = 1.5×106 V/m, and μCOX = 200 μA/V2.

Image text

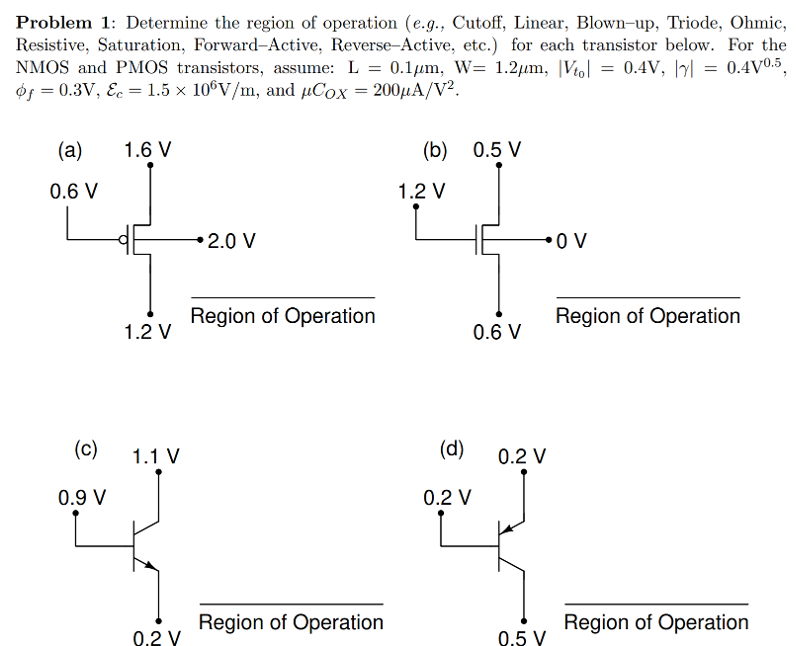

Problem 1: Determine the region of operation (e.g., Cutoff, Linear, Blown-up, Triode, Ohmic, Resistive, Saturation, Forward-Active, Reverse-Active, etc.) for each transistor below. For the NMOS and PMOS transistors, assume: L = 0.1 μ m , W = 1.2 μ m , | V t 0 | = 0.4 V , | γ | = 0.4 V 0.5 , ϕ f = 0.3 V , E c = 1.5 × 10 6 V / m , and μ C O X = 200 μ A / V 2 .

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

The NMOS transistors in the circuit of Fig. 1 have VTH0 = 300 mV, unCox = 0.15 mA/V2, lambda = 0 V-1, Vcc = 1.2 V, gamma = 0.45 V0.5, W = 2 um and L1 = 0.40 um. a) Sketch the current and transconductance of NMOS versus Vx(R1=0.1kohm, I1=1 mA) for the input voltage source (Vx) varying between 0V and 2Vcc. (Hint: Determine the different regions of operation of a transistor and derive a current equation for each region, then find the threshold voltage for changing the operation region. Likes below figure) b) For the circuit in Figure 3, sketch the output voltage versus Vb for the bulk voltage source (Vb) varying between 0 V and 1 V. The bulk of the transistor should be considered, phiF = 0.45 V. c) For the circuit considered in Figure 3, explain qualitatively what would happen for Vb > 1 V.

Solution
2 0

Figure 0.3 shows NMOS and PMOS devices with drains, source, and gate ports annotated. Determine the mode of operation (saturation, linear, or cutoff) and drain current ID for each of the biasing configurations given below. Verify with SPICE. Use the following transistor data: NMOS: k’n = 115 µA/V2 , VT0 = 0.43 V, λ = 0.06 V–1, PMOS: k’p = 30 µA/V2 , VT0 = –0.4 V, λ = -0.1 V–1. Assume (W/L) = 1. a. NMOS: VGS = 2.5 V, VDS = 2.5 V. PMOS: VGS = –0.5 V, VDS = –1.25 V. b. NMOS: VGS = 3.3 V, VDS = 2.2 V. PMOS: VGS = –2.5 V, VDS = –1.8 V. c. NMOS: VGS = 0.6 V, VDS = 0.1 V. PMOS: VGS = –2.5 V, VDS = –0.7 V
Solution
3 0

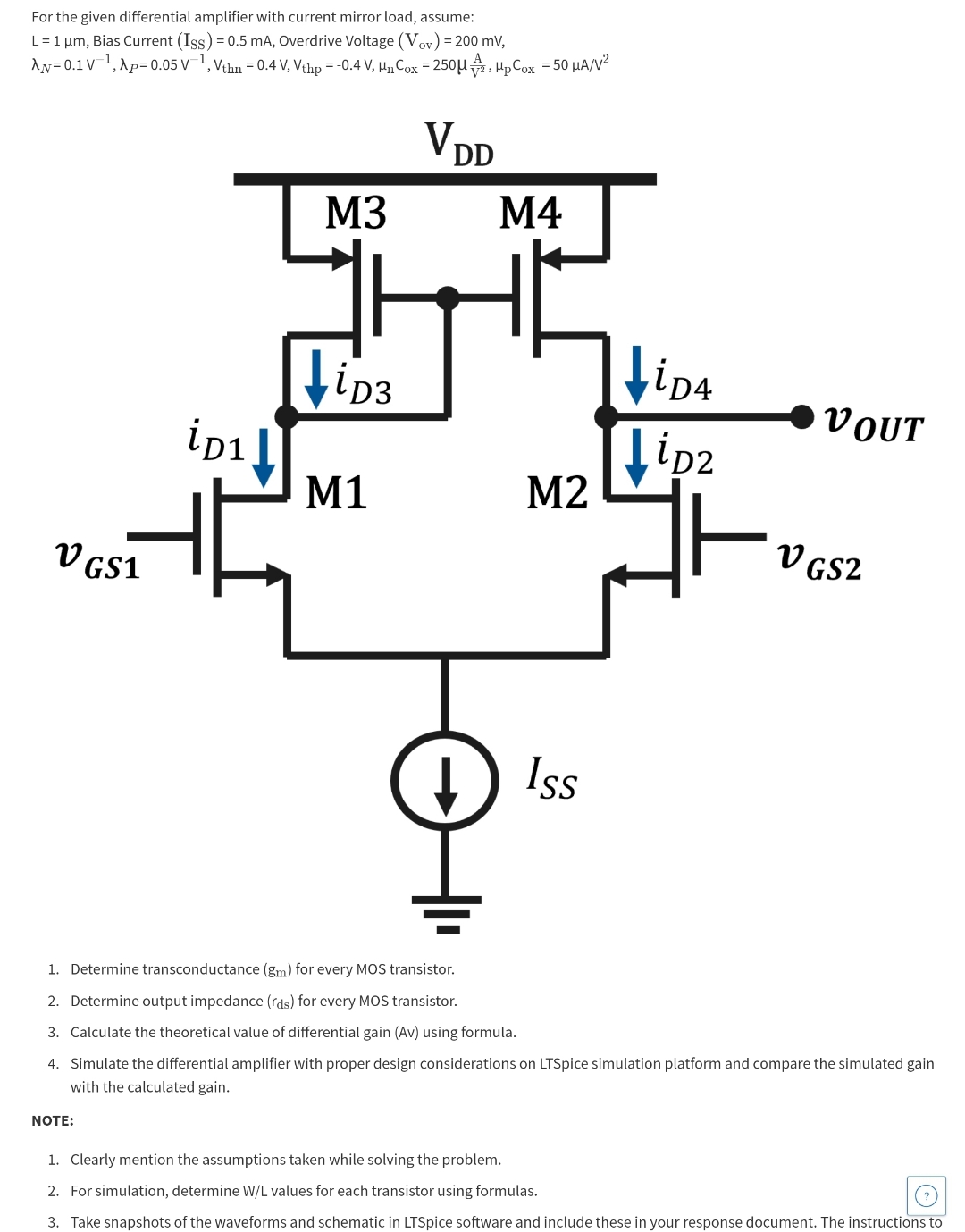

For the given differential amplifier with current mirror load, assume: L = 1 μm, Bias Current (ISS) = 0.5 mA, Overdrive Voltage (Vov) = 200 mV, λN = 0.1 V−1, λP = 0.05 V−1, Vthn = 0.4 V, Vthp = −0.4 V, μnCox = 250 μAV2, μpCox = 50 μA/V2 Determine transconductance (gm) for every MOS transistor. Determine output impedance (rds) for every MOS transistor. Calculate the theoretical value of differential gain (Av) using formula. Simulate the differential amplifier with proper design considerations on LTSpice simulation platform and compare the simulated gain with the calculated gain. NOTE: Clearly mention the assumptions taken while solving the problem. For simulation, determine W/L values for each transistor using formulas. Take snapshots of the waveforms and schematic in LTSpice software and include these in your response document. The instructions to

Solution
0 0
