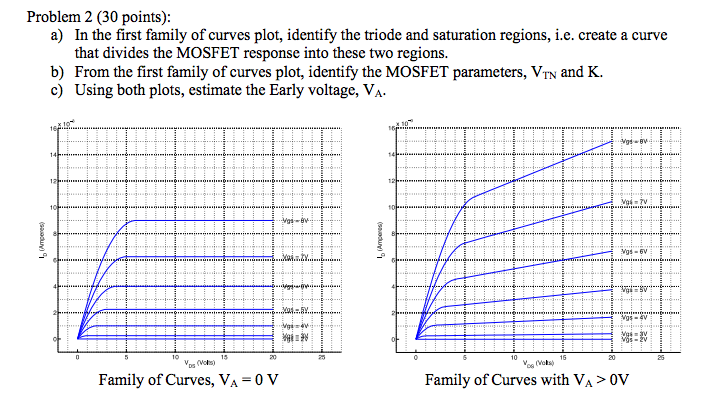

Problem 2 (30 points): a) In the first family of curves plot, identify the triode and saturation regions, i. e. create a curve that divides the MOSFET response into these two regions. b) From the first family of curves plot, identify the MOSFET parameters, VTN and K. c) Using both plots, estimate the Early voltage, VA. Family of Curves, VA = 0 V Family of Curves with VA > 0 V

Problem 2 (30 points): a) In the first family of curves plot, identify the triode and saturation regions, i. e. create a curve that divides the MOSFET response into these two regions. b) From the first family of curves plot, identify the MOSFET parameters, VTN and K. c) Using both plots, estimate the Early voltage, VA. Family of Curves, VA = 0 V Family of Curves with VA > 0 V

Image text
Problem 2 (30 points): a) In the first family of curves plot, identify the triode and saturation regions, i.e. create a curve that divides the MOSFET response into these two regions. b) From the first family of curves plot, identify the MOSFET parameters, V T N and K . c) Using both plots, estimate the Early voltage, V A . Family of Curves, V A = 0 V Family of Curves with V A > 0 V

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

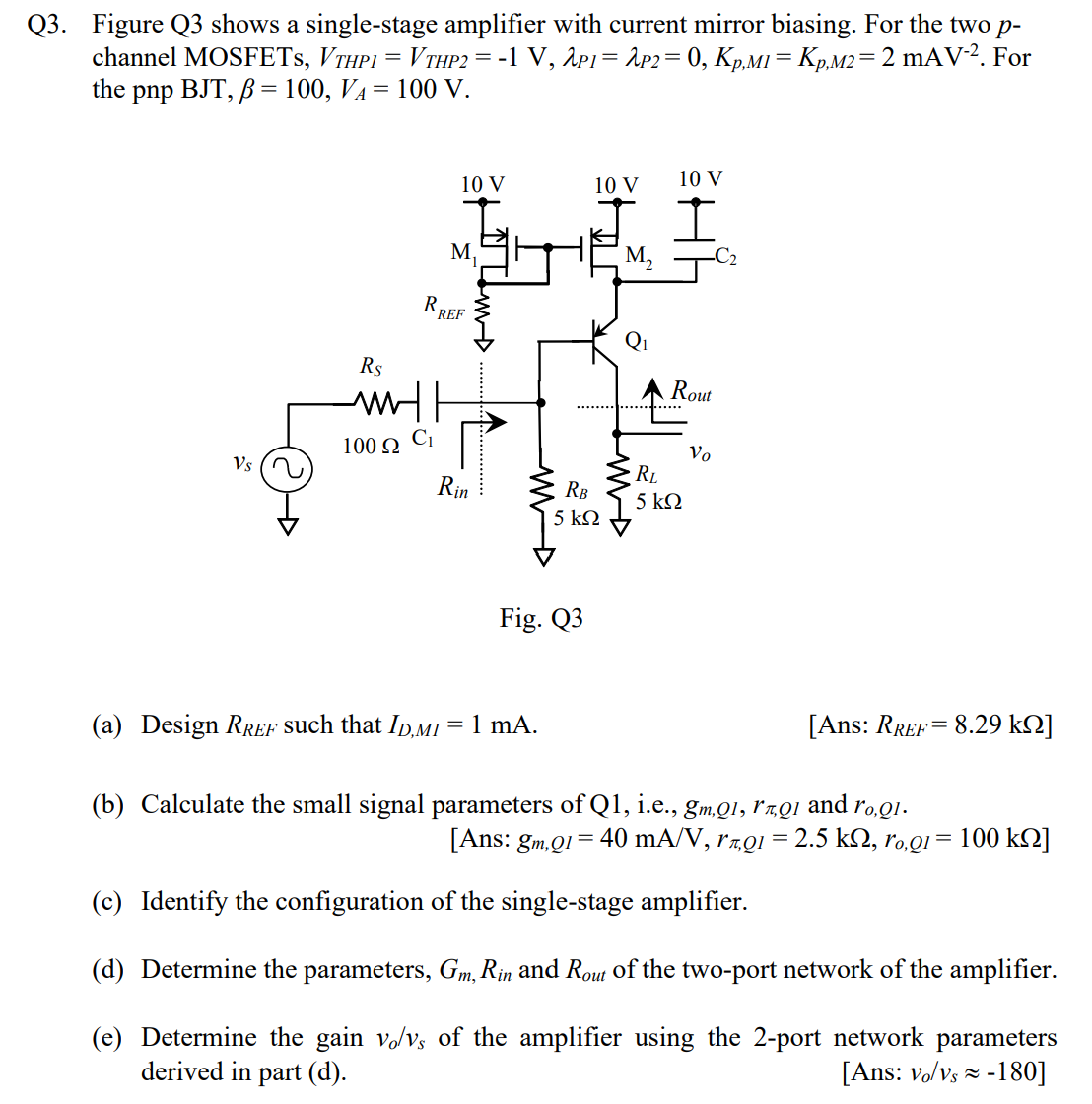

Q3. Figure Q3 shows a single-stage amplifier with current mirror biasing. For the two p channel MOSFETs, VTHP1 = VTHP2 = −1 V, λP1 = λP2 = 0, Kp,M1 = Kp,M2 = 2 mAV−2. For the pnp BJT, β = 100, VA = 100 V. Fig. Q3 (a) Design RREF such that ID,M1 = 1 mA. [ Ans: RREF = 8.29 kΩ] (b) Calculate the small signal parameters of Q1, i. e. , gm,Q1, rπ,Q1 and ro,Q1. (c) Identify the configuration of the single-stage amplifier. (d) Determine the parameters, Gm, Rin and Rout of the two-port network of the amplifier. (e) Determine the gain vo/vs of the amplifier using the 2-port network parameters derived in part (d). [Ans: vo/vs ≈ −180]

Solution
0 0

Q3. Figure Q3 shows a single-stage amplifier with current mirror biasing. For the two p channel MOSFETs, VTHPI = VTHP2 = −1 V, λPI = λP2 = 0, Kp, MI = Kp, M2 = 2 mAV−2. For the pnp BJT, β = 100, VA = 100 V. Fig. Q3 (a) Design RREF such that ID, MI = 1 mA. [Ans: RREF = 8.29 kΩ ] (b) Calculate the small signal parameters of Q1, i. e., gm,Q1, rπ,Q1 and ro,Q1. [Ans: gm, QI = 40 mA/V, rπ,Q1 = 2.5 kΩ, ro,Q1 = 100 kΩ ] (c) Identify the configuration of the single-stage amplifier. (d) Determine the parameters, Gm, Rin and Rout of the two-port network of the amplifier. (e) Determine the gain vo/vs of the amplifier using the 2-port network parameters derived in part (d). [Ans: vo/vs ≈ −180]
Solution
0 0

[20%] The circuit below is a BJT differential amplifier with VCC = VEE = 3 V. The DC current source IEE is assumed ideal. The two transistors are identical, operate in the active region, and have α = 0.99 and VA = ∞. The thermal voltage VT is 26 mV at room temperature. The input is purely differential, i. e. , vip = −vim = vid/2 a) Draw small-signal differential-mode half circuits of the differential amplifier. ( 5%) b) Express the differential voltage gain Ad, which is defined as (vop−vom)/vid, in terms of IEE, RL, α and VT⋅(6%) c) If IEE = 2 mA, what should be the value of RL to achieve Ad = 40 ? (4%) d) Choose another set of IEE and RL to maintain Ad = 40 while reducing the power consumption by half compared to the situation in part c). (2%) e) What is the maximum Ad that the circuit can achieve if the DC levels at the output nodes vop and vom must be equal to or higher than 0 V? (3%)
