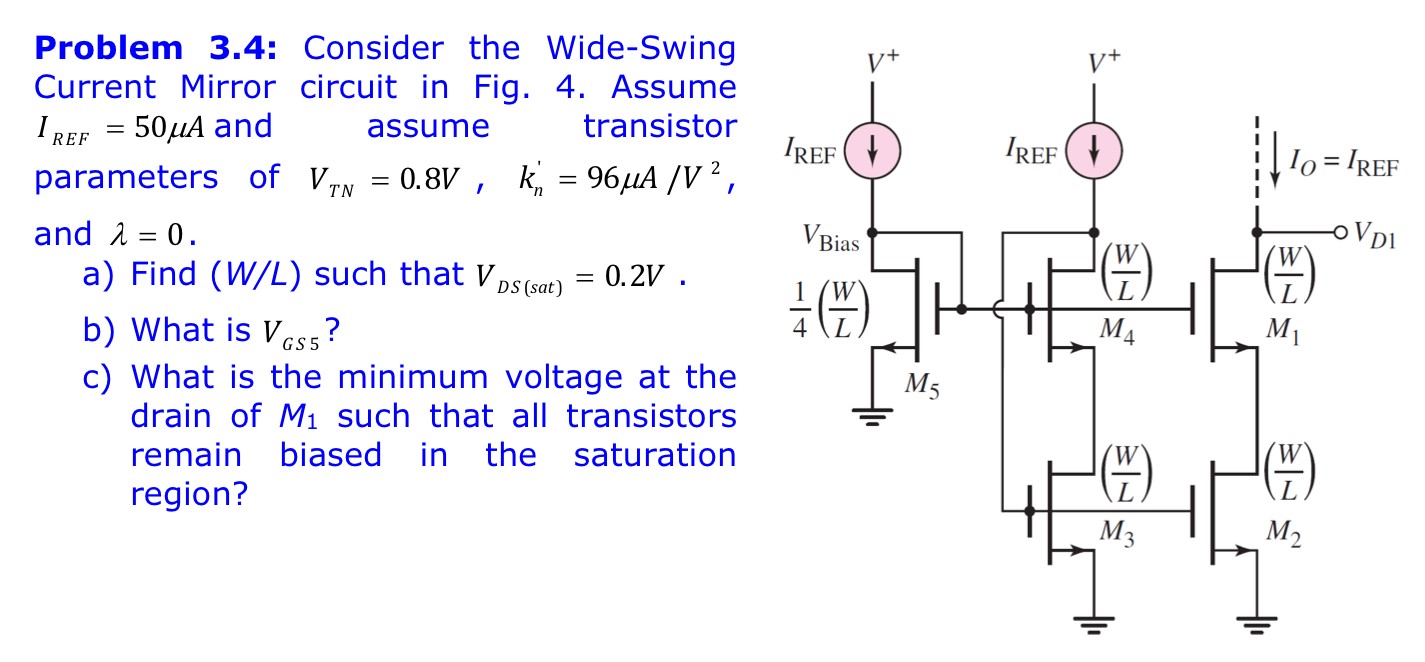

Problem 3.4: Consider the Wide-Swing Current Mirror circuit in Fig. 4. Assume IREF = 50 μA and assume transistor parameters of VTN = 0.8 V, kn′ = 96 μA/V2, and λ = 0. a) Find (W/L) such that VDS(sat) = 0.2 V. b) What is VGS5 ? c) What is the minimum voltage at the drain of M1 such that all transistors remain biased in the saturation region?
