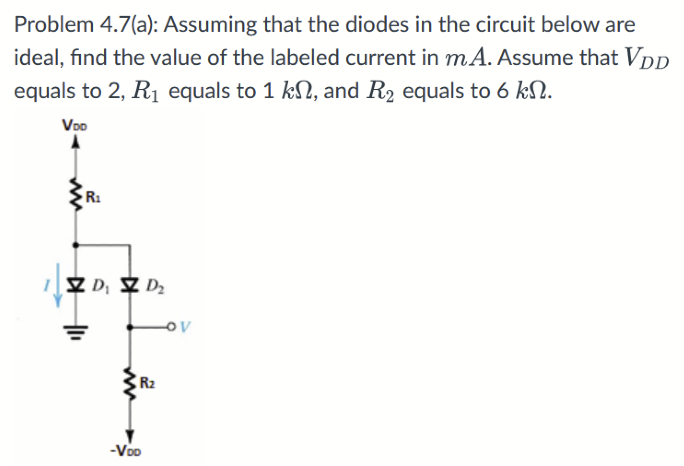

Problem 4.7(a): Assuming that the diodes in the circuit below are ideal, find the value of the labeled current in mA. Assume that VDD equals to 2, R1 equals to 1 kΩ, and R2 equals to 6 kΩ.

Problem 4.7(a): Assuming that the diodes in the circuit below are ideal, find the value of the labeled current in mA. Assume that VDD equals to 2, R1 equals to 1 kΩ, and R2 equals to 6 kΩ.

Image text
Problem 4.7(a): Assuming that the diodes in the circuit below are ideal, find the value of the labeled current in m A . Assume that V D D equals to 2 , R 1 equals to 1 k Ω , and R 2 equals to 6 k Ω .
