Problem 4: (a) What are the Q-points for the transistors in the amplifier in Fig. P15.24 if VDD = 15 V, VSS = 15 V, RSS = 62 kΩ, and RD = 62 kΩ? Assume Kn = 400 μA/V2 and VTN = 1 V. (b) What are the differential-mode gain, common-mode gain, CMRR, and differential-mode and common-mode input resistances? Figure P15.24

Problem 4: (a) What are the Q-points for the transistors in the amplifier in Fig. P15.24 if VDD = 15 V, VSS = 15 V, RSS = 62 kΩ, and RD = 62 kΩ? Assume Kn = 400 μA/V2 and VTN = 1 V. (b) What are the differential-mode gain, common-mode gain, CMRR, and differential-mode and common-mode input resistances? Figure P15.24

Image text
Problem 4: (a) What are the Q-points for the transistors in the amplifier in Fig. P15.24 if V DD = 15 V , V SS = 15 V , R SS = 62 k Ω , and R D = 62 k Ω ? Assume K n = 400 μ A / V 2 and V TN = 1 V . (b) What are the differential-mode gain, common-mode gain, CMRR, and differential-mode and common-mode input resistances?

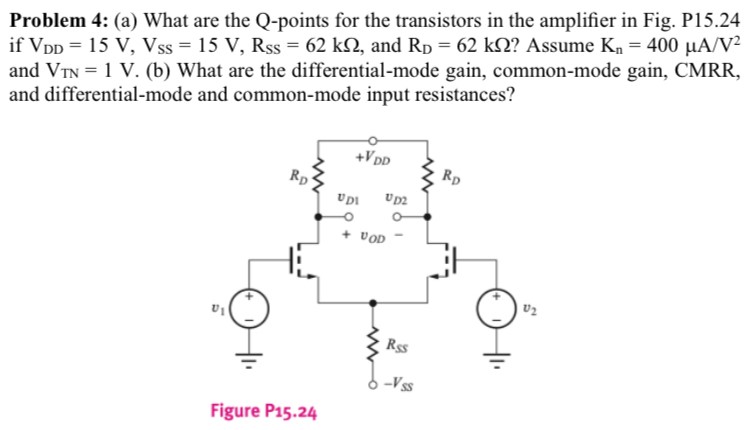

Figure P15.24

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

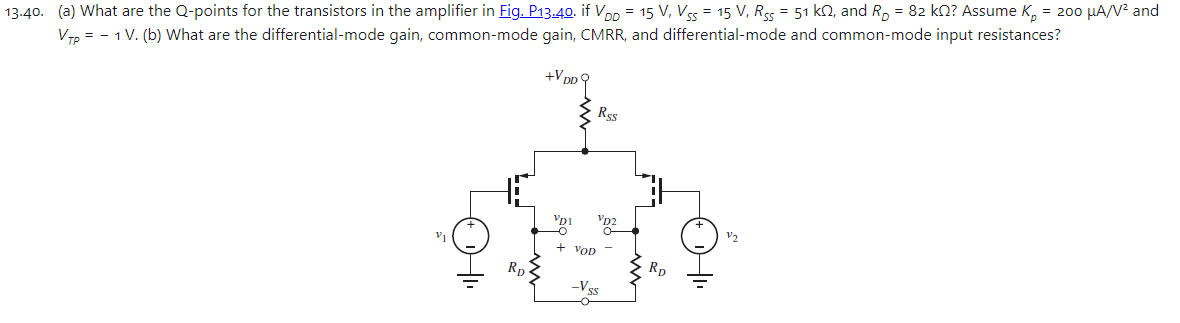

13.40. (a) What are the Q-points for the transistors in the amplifier in Fig. P13.40. if VDD = 15 V, VSS = 15 V, RSS = 51 kΩ, and RD = 82 kΩ? Assume Kp = 200 μA/V2 and VTP = −1 V. (b) What are the differential-mode gain, common-mode gain, CMRR, and differential-mode and common-mode input resistances?
