Problem 4 Given: A difference amplifier shown below With a circuit parameter R1 = R3 = 5 kΩ and R2 = R4 = 200 kΩ Required: Assuming the op amp to be ideal, a) Find the voltage gain Vd/V16(10 p) b) Find the value of the differential input resistance Rid and the output resistance R0 c) If the two key resistance ratios (R2/R1) and (R4/R3) are different from each other by 2% what do you expect the common gain Acm to be? Express your answer in dB. d) Find the value of Common Mode Rejection Ratio (CMRR) of case (c). Solution:

Problem 4 Given: A difference amplifier shown below With a circuit parameter R1 = R3 = 5 kΩ and R2 = R4 = 200 kΩ Required: Assuming the op amp to be ideal, a) Find the voltage gain Vd/V16(10 p) b) Find the value of the differential input resistance Rid and the output resistance R0 c) If the two key resistance ratios (R2/R1) and (R4/R3) are different from each other by 2% what do you expect the common gain Acm to be? Express your answer in dB. d) Find the value of Common Mode Rejection Ratio (CMRR) of case (c). Solution:

Image text
Problem 4 Given: A difference amplifier shown below With a circuit parameter R 1 = R 3 = 5 k Ω and R 2 = R 4 = 200 k Ω
Required: Assuming the op amp to be ideal, a) Find the voltage gain V d / V 16 ( 10 p ) b) Find the value of the differential input resistance R i d and the output resistance R 0 c) If the two key resistance ratios ( R 2 / R 1 ) and ( R 4 / R 3 ) are different from each other by 2 % what do you expect the common gain A c m to be? Express your answer in dB. d) Find the value of Common Mode Rejection Ratio (CMRR) of case (c). Solution:

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

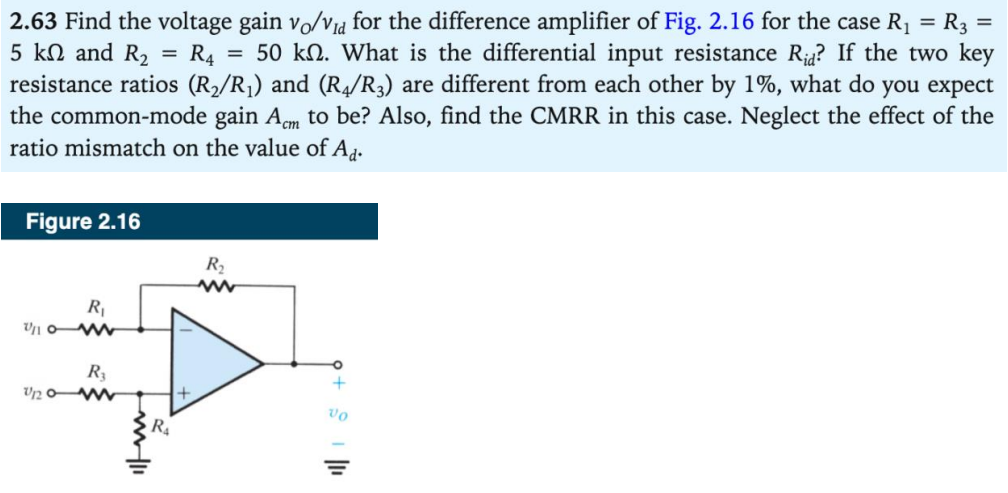

2.63 Find the voltage gain vO/vId for the difference amplifier of Fig. 2.16 for the case R1 = R3 = 5 kΩ and R2 = R4 = 50 kΩ. What is the differential input resistance Rid? If the two key resistance ratios (R2/R1) and (R4/R3) are different from each other by 1%, what do you expect the common-mode gain Acm to be? Also, find the CMRR in this case. Neglect the effect of the ratio mismatch on the value of Ad. Figure 2.16
