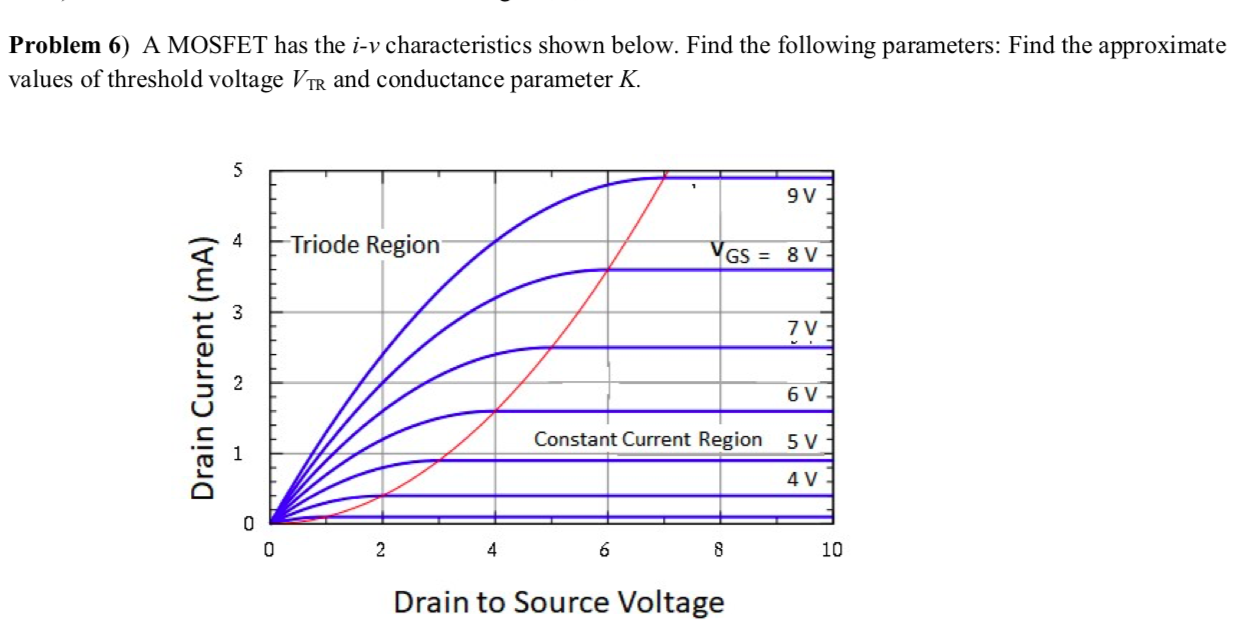

Problem 6) A MOSFET has the i−v characteristics shown below. Find the following parameters: Find the approximate values of threshold voltage VTR and conductance parameter K.

Problem 6) A MOSFET has the i−v characteristics shown below. Find the following parameters: Find the approximate values of threshold voltage VTR and conductance parameter K.

Image text
Problem 6) A MOSFET has the i − v characteristics shown below. Find the following parameters: Find the approximate values of threshold voltage V T R and conductance parameter K .

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

Q6. An amplifier circuit using an n-MOSFET is shown in Fig. Q6. The n-MOSFET has the following parameters: Kn = 1 mA/V2 and λ = 0.02 V−1. vin is a small signal AC voltage source. Fig. Q6 (a) Calculate the DC gate voltage, VG. (b) Assuming that the n-MOSFET is operating in the saturation region and neglecting channel length modulation, calculate the threshold voltage, VTHN, given that the voltage drop across the dc current source, IBUS, has been designed to be approximately 0 V. Verify that the n-MOSFET is operating in the saturation region. (c) Find the values of small signal parameters gm and ro of the n-MOSFET. (d) What is the configuration of the amplifier circuit? (e) Draw the small signal ac equivalent circuit of Fig. Q6. You may assume that in the small signal ac equivalent circuit, all the coupling capacitors behave like short circuits. (f) Calculate the input resistance, Rin, and output resistance, Rout . (g) Calculate the voltage gain, vout/vin.

Solution
0 0

The drain characteristics in the linear portion of the ohmic region for a certain idealized n-channel enhancement-mode MOSFET are shown below. Determine the values of conductance and resistance for each of the following values of VGS:( (a) +8 V; (b) +10 V; (c) +12 V. gDS = ΔID ΔVDS rDS = 1 gDS The overall drain characteristics of the idealized MOSFET of Problem 1 are shown below. (a) Determine the gate-source threshold voltage and the pinch off voltage. (b) Determine the transition voltage (from ohmic to beyond cutoff regions) for the following values of VGS:7 V, 9 V, 11 V. ID = K(VGS VGS(th) − 1)2 VP = VGS(th) VDS(tran) = VDS − VP Refer to the idealized n-channel enhancement-mode MOSFET characteristics of the figure above. (a) Determine the values of K and VGS(th). (b) Write an equation for ID in the beyond-pinchoff region. (c) Verify that the result of (b) predicts the correct values of current for VGS = +8 V, +10 V, and +12 V.

Solution
0 0

You are tasked with designing the capacitively coupled MOSFET amplifier circuit in Figure 4. The internal capacitances of the MOSFET are negligible. Assume that the frequency of the input signal is sufficiently large such that; the coupling capacitors behave as short circuits to the signal component. The MOSFET has threshold voltage Vt = 1 V and transconductance parameter kn = 2 A/V2. i) If the DC voltage at the drain is required to be 5 V. Determine the range of DC voltages at the gate, that will keep the MOSFET in saturation mode? ii) Determine suitable values for RG1, RG2 and RD in order to keep the DC voltage of the gate at 3.5 V. You may use the following equation for the drain current of a MOSFET in saturation region. iD = kn/2(vGS - Vt)2 iii) Determine the range of input signal voltages vi, that could keep the MOSFET in saturation region for the values of RG1,RG2 and RD determined in question 2) b) ii).
Solution
2 0
