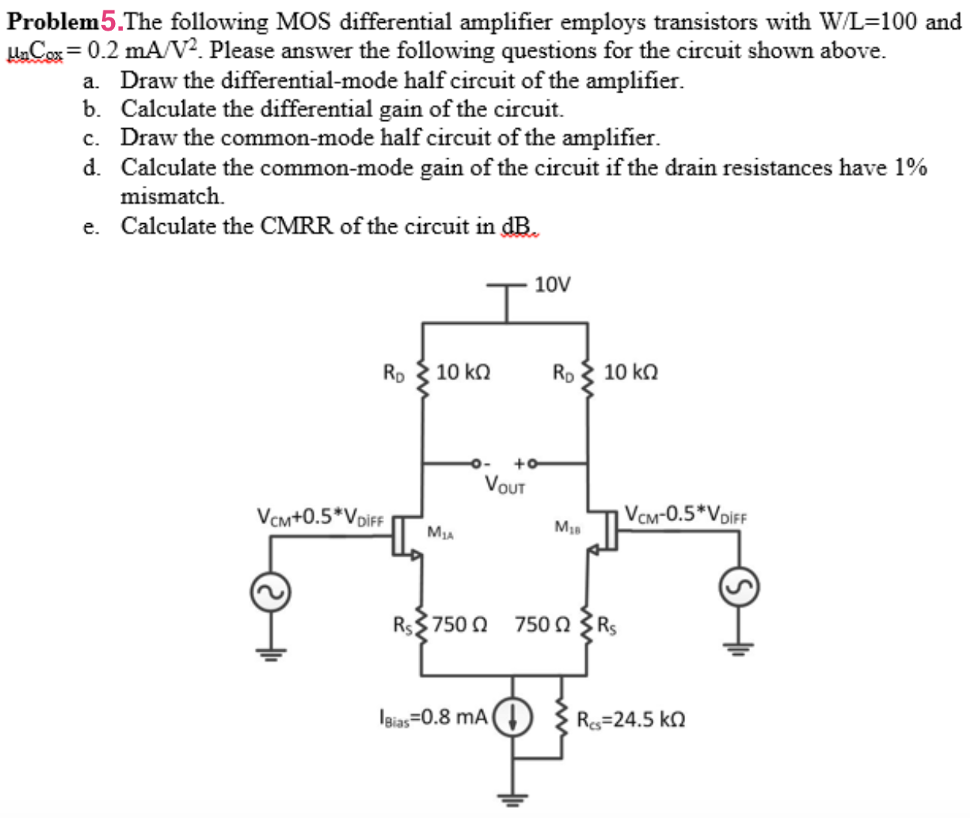

Problem5. The following MOS differential amplifier employs transistors with W/L = 100 and μnCox = 0.2 mA/V2. Please answer the following questions for the circuit shown above. a. Draw the differential-mode half circuit of the amplifier. b. Calculate the differential gain of the circuit. c. Draw the common-mode half circuit of the amplifier. d. Calculate the common-mode gain of the circuit if the drain resistances have 1% mismatch. e. Calculate the CMRR of the circuit in dB.
