Q.2. For the cascade amplifier shown below, the Rsource = 100 kOhms, Ri1 = 2 MOhms, Ro1 = 20 kOhms, Ri2 = 200 kOhms, Ro2 = 1 kOhms, Ri3 = 20 kOhms, Ro3 = 5 Ohms, Rload = 100 Ohms. Open circuit gain Avo1 = 10, Avo2 = 100, Avo3 = 1.2.1 Let Vs be 2 mV, Find Vi1, Vi2, Vi3, and VL. (20 pts) 2.2 Please calculate the overall voltage gain of VL/Vs. (10 pts)

Q.2. For the cascade amplifier shown below, the Rsource = 100 kOhms, Ri1 = 2 MOhms, Ro1 = 20 kOhms, Ri2 = 200 kOhms, Ro2 = 1 kOhms, Ri3 = 20 kOhms, Ro3 = 5 Ohms, Rload = 100 Ohms. Open circuit gain Avo1 = 10, Avo2 = 100, Avo3 = 1.2.1 Let Vs be 2 mV, Find Vi1, Vi2, Vi3, and VL. (20 pts) 2.2 Please calculate the overall voltage gain of VL/Vs. (10 pts)

Image text
Q.2. For the cascade amplifier shown below, the Rsource=100 kOhms, Ri1=2 MOhms, Ro1=20 kOhms, Ri2=200 kOhms, Ro2=1 kOhms, Ri3=20 kOhms, Ro3=5 Ohms, Rload=100 Ohms. Open circuit gain Avo1=10, Avo2=100, Avo3=1. 2.1 Let Vs be 2 mV , Find Vi 1 , Vi 2 , Vi 3 , and VL . (20pts) 2.2 Please calculate the overall voltage gain of VL/Vs. (10 pts)

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

For the cascaded current amplifier shown below, the parameters are: Rs = 20 kΩ, Ro1 = Ro2 = Ro3 = 4.7 kΩ, Ri1 = Ri2 = Ri3 = RL = 100 kΩ, and Ais1 = Ais2 = Ais3 = 100. Find (a) the effective current gain Ai = io/is, (b) the overall voltage gain Av = vo/vs, and (c) the power gain Ap = PL/Pi. Give the answers in dB unit.
Solution
3 0

P6. A transconductance amplifier is cascaded with a transresistance amplifier, as shown in the figure. The parameters are RS = 5 kΩ, Ri1 = 50 kΩ, Ro1 = 200 kΩ, Rm = 10 kVA, Ri2 = 1 MΩ, Ro2 = 100 kΩ, RL = 1 kΩ, and Gm = 20 mA/V. a) Calculate (both in ratio and dB) a. the overall open-circuit voltage gain Avo = vo/vi b. the effective voltage gain Gv = vo/vs c. the overall current gain Ai = io/ii d. the power gain Ap = PL/Pi b) Convert the circuit to an equivalent single-stage Voltage amplifier by drawing its model and specifying the equivalent Ri, Ro, and Avo c) Verify your results using Multisim.P6. A transconductance amplifier is cascaded with a transresistance amplifier, as shown in the figure. The parameters are RS = 5 kΩ, Ri1 = 50 kΩ, Ro1 = 200 kΩ, Rm = 10 kVA, Ri2 = 1 MΩ, Ro2 = 100 kΩ, RL = 1 kΩ, and Gm = 20 mA/V. a) Calculate (both in ratio and dB) a. the overall open-circuit voltage gain Avo = vo/vi b. the effective voltage gain Gv = vo/vs c. the overall current gain Ai = io/ii d. the power gain Ap = PL/Pi b) Convert the circuit to an equivalent single-stage Voltage amplifier by drawing its model and specifying the equivalent Ri, Ro, and Avo c) Verify your results using Multisim.
Solution
0 0

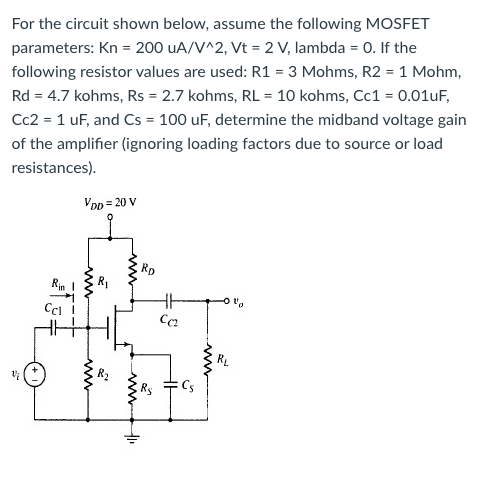

For the circuit shown below, assume the following MOSFET parameters: Kn = 200 µA/V^2, Vt = 2 V, lambda = 0. If the following resistor values are used: R1 = 3 Mohms, R2 = 1Mohm, Rd = 4.7 kohms, Rs = 2.7 kohms, RL = 10 kohms, Cc1 = 0.01 uF, Cc2 = 1uF, and Cs = 100 uF, determine the midband voltage gain of the amplifier (ignoring loading factors due to source or load resistances).
