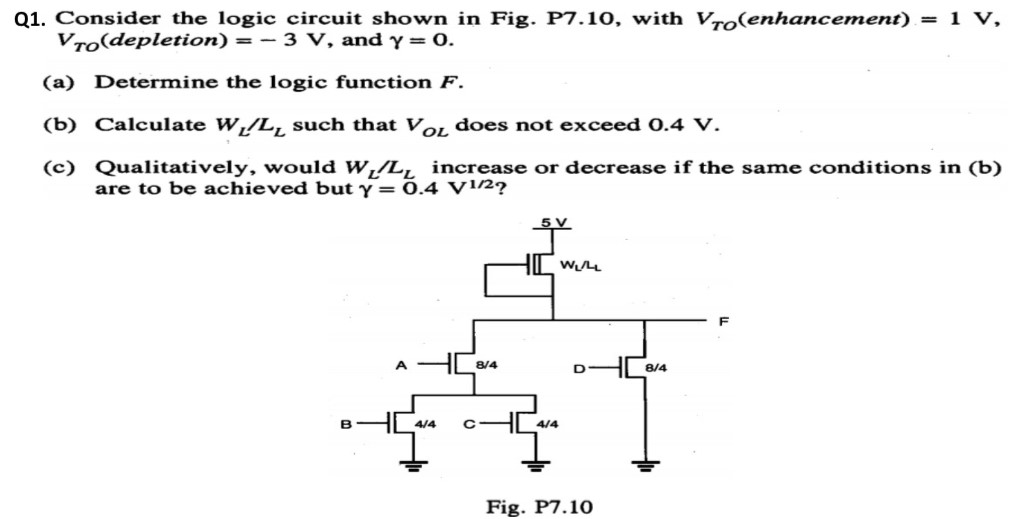

Q1. Consider the logic circuit shown in Fig. P7.10, with VTO (enhancement) = 1 V, VTO (depletion) = −3 V, and γ = 0. (a) Determine the logic function F. (b) Calculate WL/LL such that VOL does not exceed 0.4 V. (c) Qualitatively, would WL/LL increase or decrease if the same conditions in (b) are to be achieved but γ = 0.4 V1/2? Fig. P7.10
