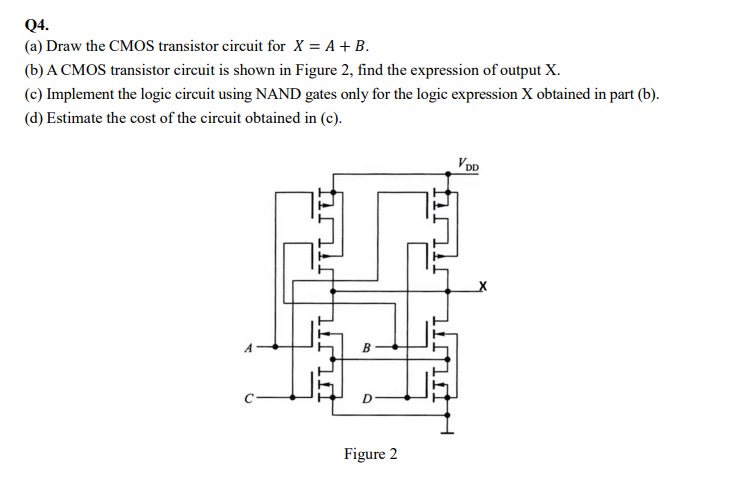

Q4. (a) Draw the CMOS transistor circuit for X = A + B. (b) A CMOS transistor circuit is shown in Figure 2, find the expression of output X. (c) Implement the logic circuit using NAND gates only for the logic expression X obtained in part (b). (d) Estimate the cost of the circuit obtained in (c). Figure 2

Q4. (a) Draw the CMOS transistor circuit for X = A + B. (b) A CMOS transistor circuit is shown in Figure 2, find the expression of output X. (c) Implement the logic circuit using NAND gates only for the logic expression X obtained in part (b). (d) Estimate the cost of the circuit obtained in (c). Figure 2

Image text
Q4. (a) Draw the CMOS transistor circuit for X = A + B . (b) A CMOS transistor circuit is shown in Figure 2, find the expression of output X . (c) Implement the logic circuit using NAND gates only for the logic expression X obtained in part (b). (d) Estimate the cost of the circuit obtained in (c). Figure 2
