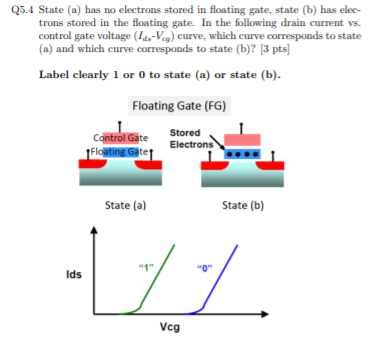

Q5.4 State (a) has no electrons stored in floating gate, state (b) has electrons stored in the floating gate. In the following drain current vs. control gate voltage (Ids−Vcg) curve, which curve corresponds to state (a) and which curve corresponds to state (b)? [3 pts] Label clearly 1 or 0 to state (a) or state (b). Floating Gate (FG)

Q5.4 State (a) has no electrons stored in floating gate, state (b) has electrons stored in the floating gate. In the following drain current vs. control gate voltage (Ids−Vcg) curve, which curve corresponds to state (a) and which curve corresponds to state (b)? [3 pts] Label clearly 1 or 0 to state (a) or state (b). Floating Gate (FG)

Image text
Q5.4 State (a) has no electrons stored in floating gate, state (b) has electrons stored in the floating gate. In the following drain current vs. control gate voltage ( I d s − V c q ) curve, which curve corresponds to state (a) and which curve corresponds to state (b)? [3 pts] Label clearly 1 or 0 to state (a) or state (b). Floating Gate (FG)

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

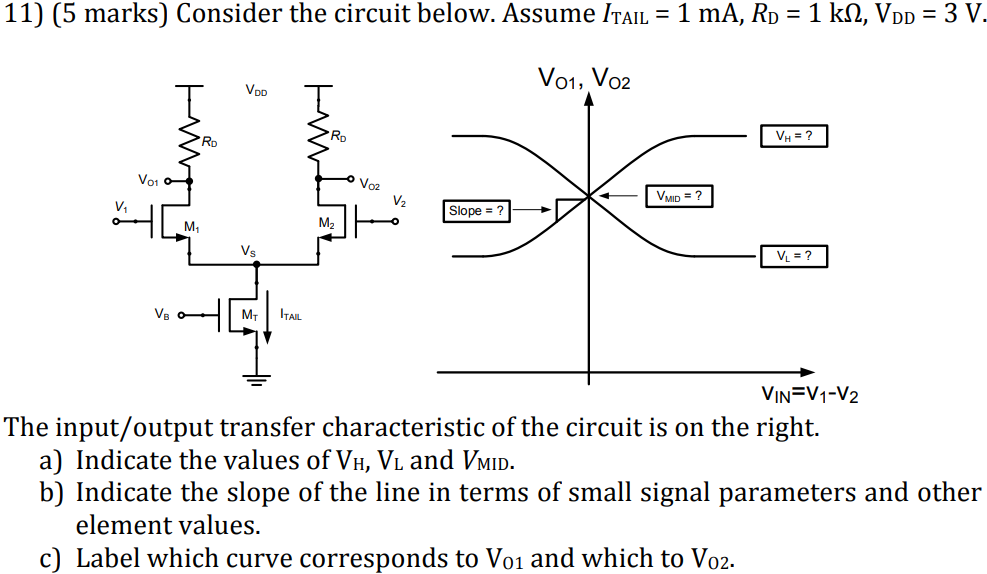

Consider the circuit below. Assume ITAIL = 1 mA, RD = 1 kΩ, VDD = 3 V The input/output transfer characteristic of the circuit is on the right. a) Indicate the values of VH, VL and VMID. b) Indicate the slope of the line in terms of small signal parameters and other element values. c) Label which curve corresponds to V01 and which to V02.
