Question 2 Consider a CMOS inverter where device parameters PMOS and NMOS are not matched. The transistor device parameters are: kn = 0.5 (mA/V2), Vtn = 1.5 V, kp = 1(mAV2), Vtp = −1 V, CL = 1 pF, VDD Use λ = 0 in your analysis. (a) Find Vin when ∂Vo/∂Vin is infinite on the VTC curve. Vin =

Question 2 Consider a CMOS inverter where device parameters PMOS and NMOS are not matched. The transistor device parameters are: kn = 0.5 (mA/V2), Vtn = 1.5 V, kp = 1(mAV2), Vtp = −1 V, CL = 1 pF, VDD Use λ = 0 in your analysis. (a) Find Vin when ∂Vo/∂Vin is infinite on the VTC curve. Vin =

Image text

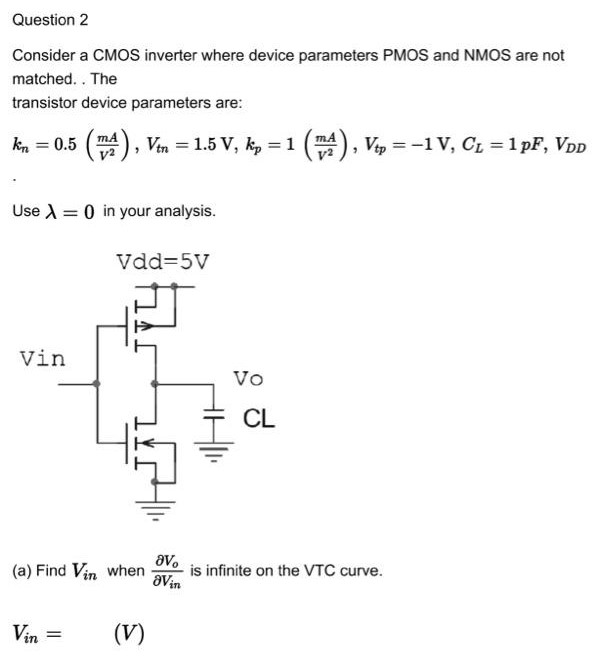

Question 2 Consider a CMOS inverter where device parameters PMOS and NMOS are not matched. . The transistor device parameters are:
k n = 0.5 ( m A V 2 ) , V t n = 1.5 V , k p = 1 ( m A V 2 ) , V t p = − 1 V , C L = 1 p F , V D D
Use λ = 0 in your analysis. (a) Find V in when ∂ V o ∂ V in is infinite on the VTC curve.
V i n =

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

Question 2. Current calculations in 180 nm node MOSFET transistor technology II You may assume the following data in the usual notation. Equations for the drain current can be found in the notes. VDD = 1.8 V, Vtn = 0.5 V, Vtp = −0.5 V and λn = |λp| = 0.2 V−1. Take kn = 4kp with kn = 300 μA/V2, where k is the process transconductance parameter. L = 0.18 μm, (W/L)n = n = 1.5 and (W/L)p = p = 6. (a) How much drain current flows in an n-channel MOSFET when Vgs = 0.7 V and Vds = 0.1 V ? Express the drain current as the drain current per μm device width. (b) How much drain current flows in a p-channel MOSFET when a voltage of 1.1 V is applied to gate electrode and 1.7 V applied to the drain electrode? Comment on your answer in relation to the result in part (a). (Hint: in this question you are not give the potential differences). (c) Ignoring the effects of channel length modulation, how much drain current flows in an nchannel MOSFET when Vgs = 0.7 V and Vds = 0.8 V ? How would your answer change if channel length modulation effects are taken into consideration?

Solution
0 0

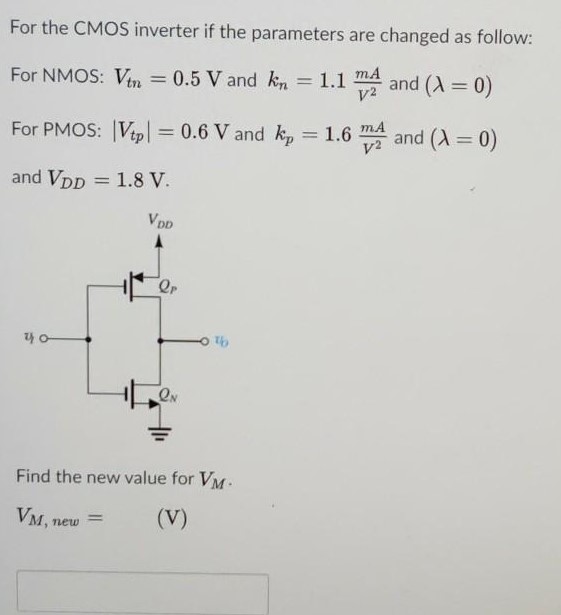

For the CMOS inverter if the parameters are changed as follow: For NMOS: Vtn = 0.5 V and kn = 1.1 mA/V2 and (λ = 0) For PMOS: |Vtp| = 0.6 V and kp = 1.6 mA/V2 and (λ = 0) and VDD = 1.8 V. Find the new value for VM. VM, new = (V)
