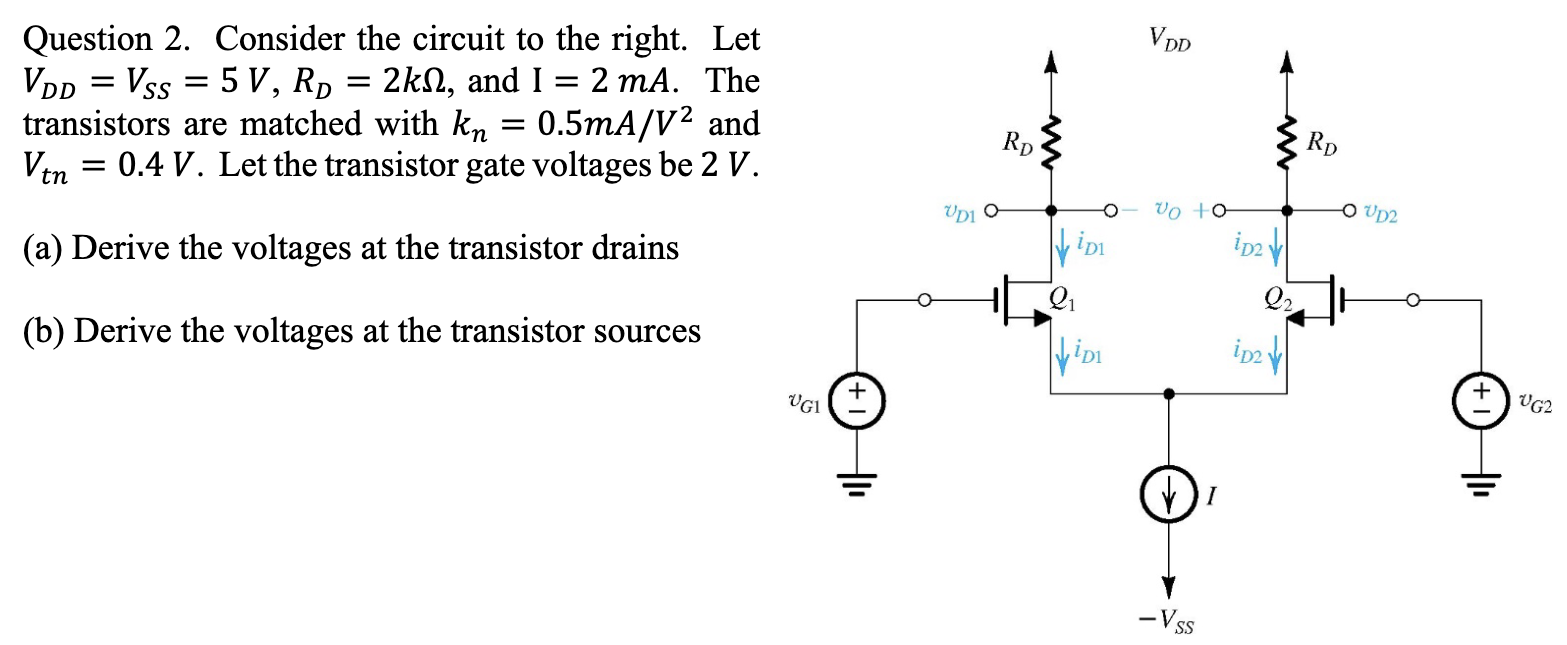

Question 2. Consider the circuit to the right. Let VDD = VSS = 5 V, RD = 2 kΩ, and I = 2 mA. The transistors are matched with kn = 0.5 mA/V2 and Vtn = 0.4 V. Let the transistor gate voltages be 2 V. (a) Derive the voltages at the transistor drains (b) Derive the voltages at the transistor sources

Question 2. Consider the circuit to the right. Let VDD = VSS = 5 V, RD = 2 kΩ, and I = 2 mA. The transistors are matched with kn = 0.5 mA/V2 and Vtn = 0.4 V. Let the transistor gate voltages be 2 V. (a) Derive the voltages at the transistor drains (b) Derive the voltages at the transistor sources

Image text

Question 2. Consider the circuit to the right. Let

V_{D D} = V_{S S} = 5 V, R_{D} = 2 k Ω

, and

I = 2 m A

. The transistors are matched with

k_{n} = 0.5 m A / V^{2}

and

V_{t n} = 0.4 V

. Let the transistor gate voltages be

2 V

. (a) Derive the voltages at the transistor drains (b) Derive the voltages at the transistor sources
