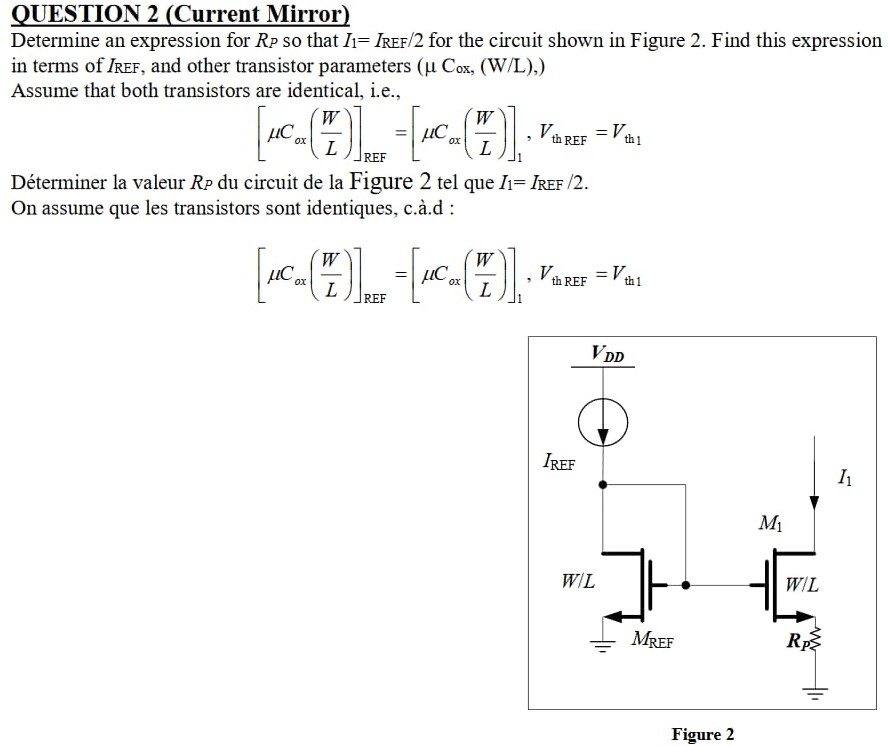

QUESTION 2 (Current Mirror) Determine an expression for RP so that I1 = IREF/2 for the circuit shown in Figure 2. Find this expression in terms of IREF, and other transistor parameters (μCox, (W/L) ) Assume that both transistors are identical, i. e. , [μCox(W L)]REF = [μCox(W L)]1, VthREF = Vth1

QUESTION 2 (Current Mirror) Determine an expression for RP so that I1 = IREF/2 for the circuit shown in Figure 2. Find this expression in terms of IREF, and other transistor parameters (μCox, (W/L) ) Assume that both transistors are identical, i. e. , [μCox(W L)]REF = [μCox(W L)]1, VthREF = Vth1

Image text
QUESTION 2 (Current Mirror) Determine an expression for R P so that I 1 = I R E F / 2 for the circuit shown in Figure 2. Find this expression in terms of I R E F , and other transistor parameters ( μ C o x o x , ( W / L ) ) Assume that both transistors are identical, i.e.,
[ μ C o x ( W L ) ] R E F = [ μ C o x ( W L ) ] 1 , V t h R E F = V t h 1
Déterminer la valeur R P du circuit de la Figure 2 tel que I 1 = I R E F / 2 . On assume que les transistors sont identiques, c.à.d :
[ μ C o x ( W L ) ] R E F = [ μ C o x ( W L ) ] 1 , V th REF = V th 1
Figure 2
