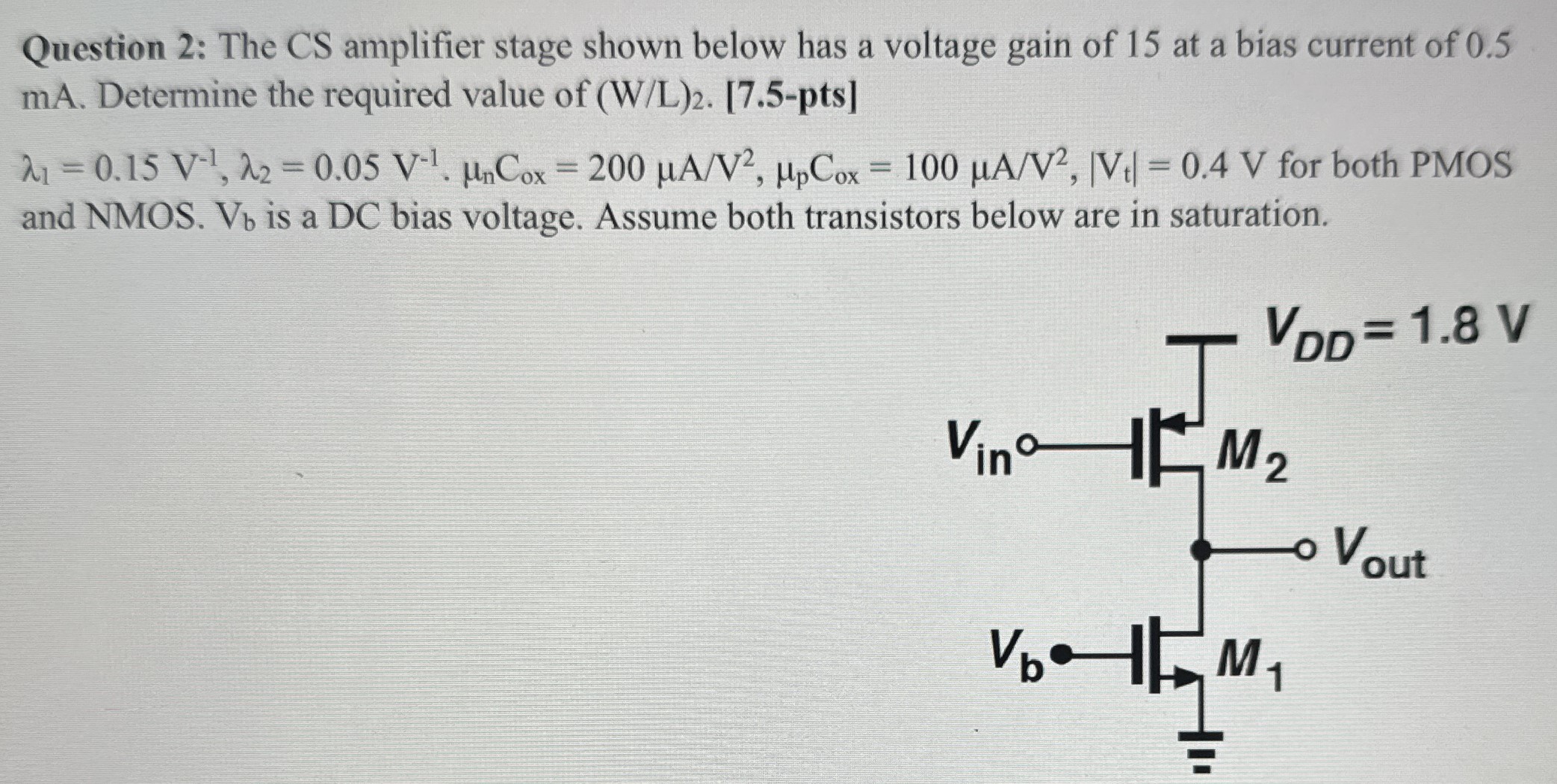

Question 2: The CS amplifier stage shown below has a voltage gain of 15 at a bias current of 0.5 mA. Determine the required value of (W/L)2. [7.5-pts] λ1 = 0.15 V−1, λ2 = 0.05 V−1⋅μnCox = 200 μA/V2, μpCox = 100 μA/V2, |Vt| = 0.4 V for both PMOS and NMOS. Vb is a DC bias voltage. Assume both transistors below are in saturation.

Question 2: The CS amplifier stage shown below has a voltage gain of 15 at a bias current of 0.5 mA. Determine the required value of (W/L)2. [7.5-pts] λ1 = 0.15 V−1, λ2 = 0.05 V−1⋅μnCox = 200 μA/V2, μpCox = 100 μA/V2, |Vt| = 0.4 V for both PMOS and NMOS. Vb is a DC bias voltage. Assume both transistors below are in saturation.

Image text

Question 2: The CS amplifier stage shown below has a voltage gain of 15 at a bias current of 0.5 mA . Determine the required value of

(W / L) 2

. [7.5-pts]

λ_{1} = 0.15 V^{- 1}, λ_{2} = 0.05 V^{- 1} \cdot μ_{n} C_{ox} = 200 μ A / V^{2}, μ_{p} C_{ox} = 100 μ A / V^{2}, | V_{t} | = 0.4 V

for both PMOS and NMOS.

V_{b}

is a DC bias voltage. Assume both transistors below are in saturation.
