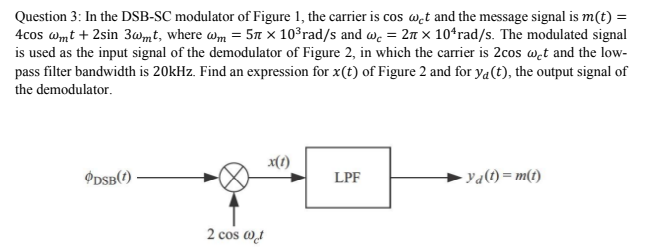

Question 3: In the DSB-SC modulator of Figure 1, the carrier is cos⁡ωct and the message signal is m(t) = 4 cos⁡ωmt + 2sin⁡3ωmt, where ωm = 5π×103 rad/s and ωc = 2π×104 rad/s. The modulated signal is used as the input signal of the demodulator of Figure 2, in which the carrier is 2cos⁡ωct and the lowpass filter bandwidth is 20 kHz. Find an expression for x(t) of Figure 2 and for yd(t), the output signal of the demodulator.
