Refer to the Circuit above. For the MOSFET, VT = 1 V and k = kn’W/L = 4 mA/V2. (a) Identify the value of the gate voltage vG and the drain-source current iDS. (b) Calculate the value of the drain voltage vD using the 1 kΩ resistor. (c) Analyze the circuit to find vS. Here, use the Method of Assumed State. You must validate your assumptions. [Hint: assume vS = x]

Refer to the Circuit above. For the MOSFET, VT = 1 V and k = kn’W/L = 4 mA/V2. (a) Identify the value of the gate voltage vG and the drain-source current iDS. (b) Calculate the value of the drain voltage vD using the 1 kΩ resistor. (c) Analyze the circuit to find vS. Here, use the Method of Assumed State. You must validate your assumptions. [Hint: assume vS = x]

Image text
Refer to the Circuit above. For the MOSFET, VT = 1 V and k = kn’W/L = 4 mA/V2. (a) Identify the value of the gate voltage vG and the drain-source current iDS. (b) Calculate the value of the drain voltage vD using the 1 kΩ resistor. (c) Analyze the circuit to find vS. Here, use the Method of Assumed State. You must validate your assumptions. [Hint: assume vS = x]

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

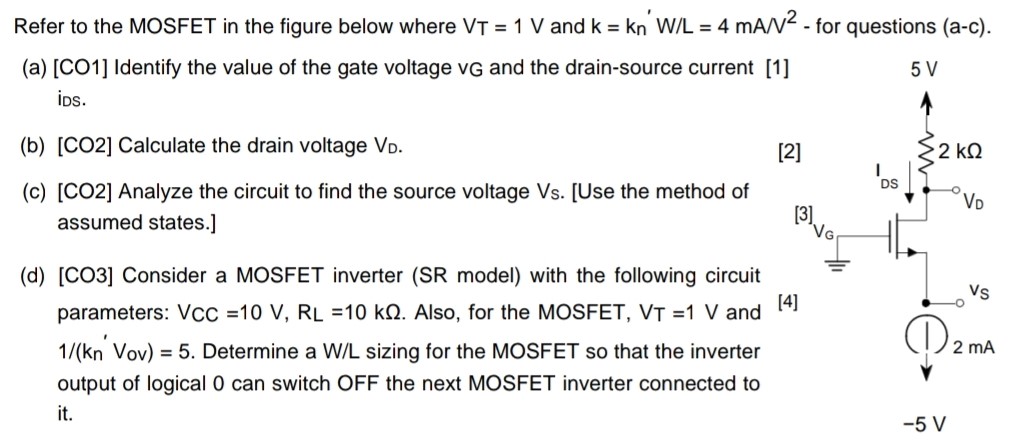

Refer to the MOSFET in the figure below where VT = 1 V and k = kn′W/L = 4 mA/V2 - for questions (a-c). (a) [CO1] Identify the value of the gate voltage vG and the drain-source current ids. (b) [CO2] Calculate the drain voltage VD. (c) [CO2] Analyze the circuit to find the source voltage Vs. [Use the method of assumed states. ] (d) [CO3] Consider a MOSFET inverter (SR model) with the following circuit parameters: VCC = 10 V, RL = 10 kΩ. Also, for the MOSFET, VT = 1 V and 1 /(kn′Vov ) = 5. Determine a W/L sizing for the MOSFET so that the inverter output of logical 0 can switch OFF the next MOSFET inverter connected to it.
