Sketch Vo versus Vi for the circuits as Vi varies from 0 to VDD. Identify important transition points. Channel-length modulation and the body effect can be ignored. (1) Mark the different operation regions of M1 and M2 in the plot. Please note that we assume MI is always in the saturation region in Fig. 5a. (2) Provide symbolic expressions for Vi and Vo at important transition points.

Sketch Vo versus Vi for the circuits as Vi varies from 0 to VDD. Identify important transition points. Channel-length modulation and the body effect can be ignored. (1) Mark the different operation regions of M1 and M2 in the plot. Please note that we assume MI is always in the saturation region in Fig. 5a. (2) Provide symbolic expressions for Vi and Vo at important transition points.

Image text
Sketch Vo versus Vi for the circuits as Vi varies from 0 to VDD. Identify important transition points. Channel-length modulation and the body effect can be ignored. (1) Mark the different operation regions of M1 and M2 in the plot. Please note that we assume MI is always in the saturation region in Fig. 5a. (2) Provide symbolic expressions for Vi and Vo at important transition points.

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up

Similar/Related Questions

Q2. Common Source with diode-connected For questions (1)-(5), channel-length modulation and the body effect can be ignored. M1 is in the saturation region. (1) Which region does M2 work in? (2) Provide a symbolic expression for the small-signal gain of the amplifier using Vov1 and Vov2, which are the overdrive voltage of M1 and M2, respectively.
Solution
1 0

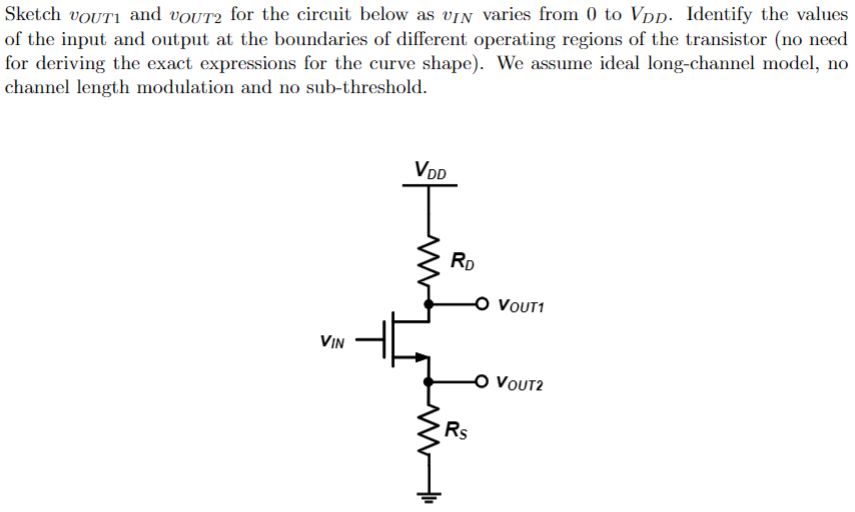

Sketch vOUT1 and vOUT2 for the circuit below as vIN varies from 0 to VDD. Identify the values of the input and output at the boundaries of different operating regions of the transistor (no need for deriving the exact expressions for the curve shape). We assume ideal long-channel model, no channel length modulation and no sub-threshold.
Solution
0 0

Consider MOSFET-based current source circuits shown below. Assume that the n-type MOSFET transistors follow the long-channel model with μnCox = 100 μA/V2 and Vth,n = 0.5 V. All the transistors have a fixed channel length L = 0.25 μm. The bias voltage VB1 is at 0.8 V. Assume that all transistors have no back-bias effect. (1) (2) (a) For a basic current source in Fig. (1), size the NMOS transistor M1's width ( = W1) so that it conducts a current of 1 mA when it operates in saturation region. You may assume λn = 0. (b) What is the minimum value of Vout for this circuit that keeps M1 in saturation region? (c) For a cascode current source in Fig. (2), assume that the transistor M2 has the same width with M1 you determined from part (a). Determine the value of VB2 that yields the lowest minimum VOUT keeping both M1 and M2 in saturation regions. (d) Now, let's assume that the transistors M1 and M2 have a finite output resistance with λn = 0.1 V−1. Compute the value of the output resistance (Rout) of this cascode current source when M1 and M2 are in the saturation region. (Hint: Calculate the output impedance in a small signal equivalent circuit.)
