Suppose that NA(x) = No exp(-x/L) in a region of silicon extending from x = 0 to x = 8 µm, where No is a constant. Assume that p(x) = NA(x). Assuming that jp must be zero in thermal equilibrium, show that a built-in electric field must exist and find its value for L = 1 µm and No = 10^18/cm3.

Suppose that NA(x) = No exp(-x/L) in a region of silicon extending from x = 0 to x = 8 µm, where No is a constant. Assume that p(x) = NA(x). Assuming that jp must be zero in thermal equilibrium, show that a built-in electric field must exist and find its value for L = 1 µm and No = 10^18/cm3.

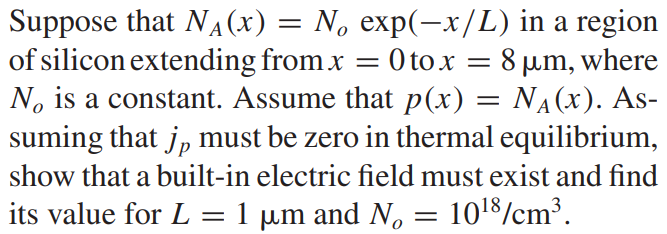

Image text
