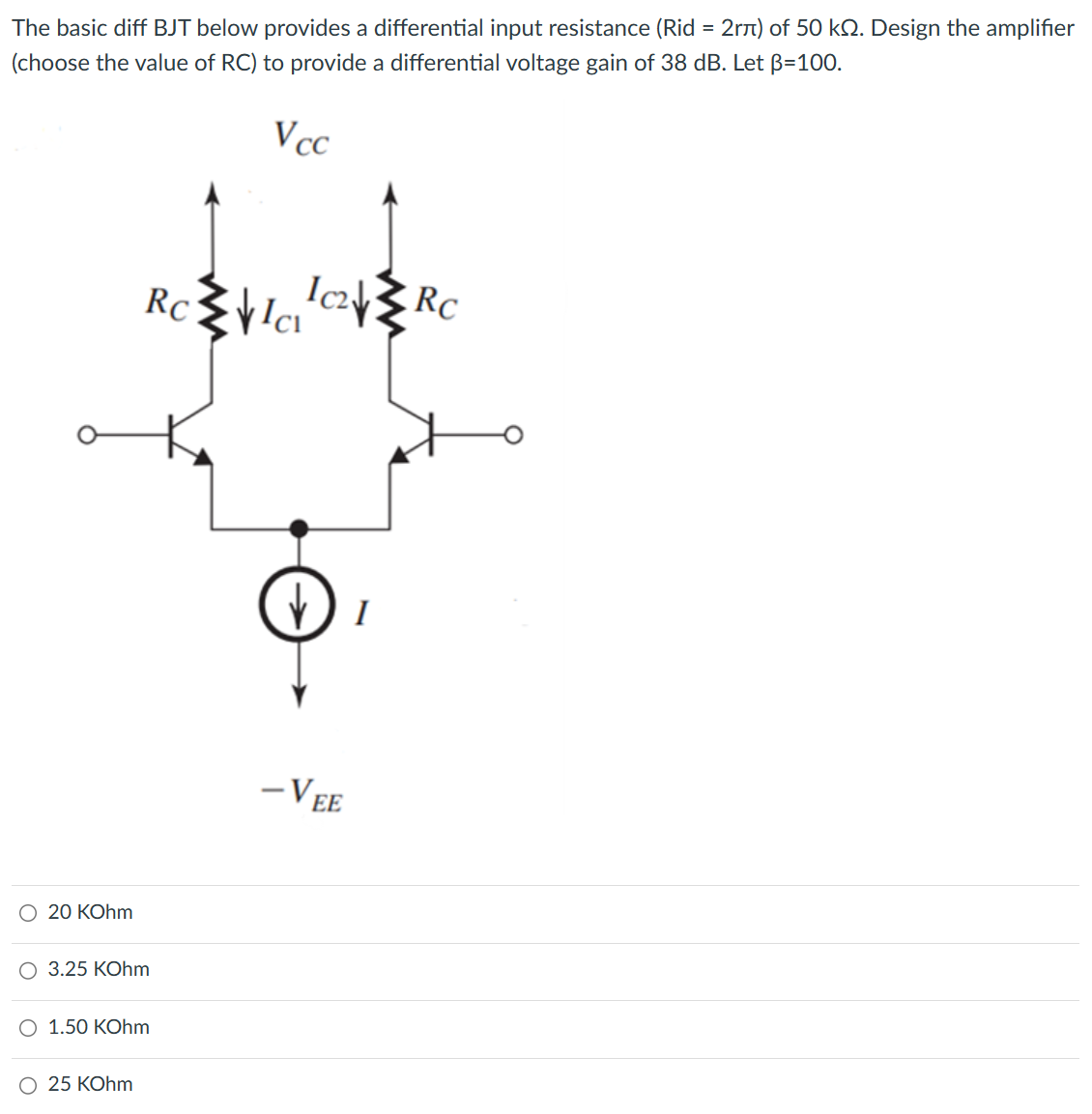

The basic diff BJT below provides a differential input resistance (Rid = 2rπ) of 50 kΩ. Design the amplifier (choose the value of RC) to provide a differential voltage gain of 38 dB. Let β = 100. 20 KOhm 3.25 KOhm 1.50 KOhm 25 KOhm
