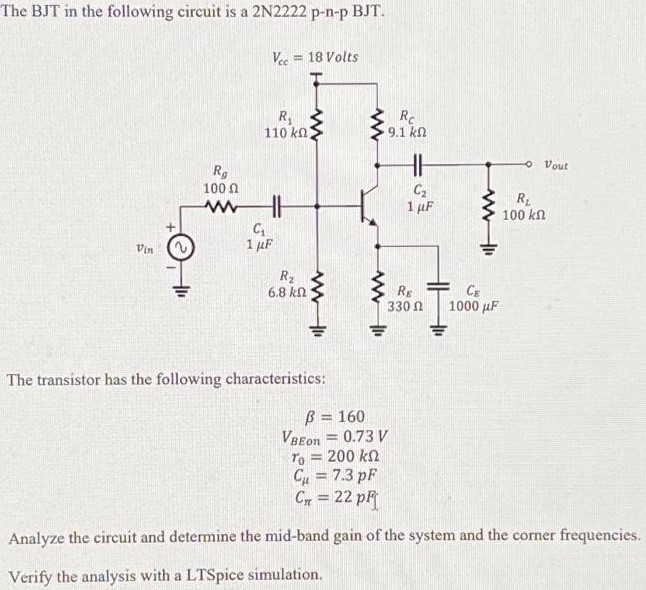

The BJT in the following circuit is a 2N2222 p-n-p BJT. The transistor has the following characteristics: β = 160 VBEon = 0.73 V r0 = 200 kΩ Cμ = 7.3 pF Cπ = 22 pF Analyze the circuit and determine the mid-band gain of the system and the corner frequencies. Verify the analysis with a LTSpice simulation.
Image text
The BJT in the following circuit is a 2N2222 p-n-p BJT. The transistor has the following characteristics: β = 160 VBEon = 0.73 V r0 = 200 kΩ Cμ = 7.3 pF Cπ = 22 pF Analyze the circuit and determine the mid-band gain of the system and the corner frequencies. Verify the analysis with a LTSpice simulation.
