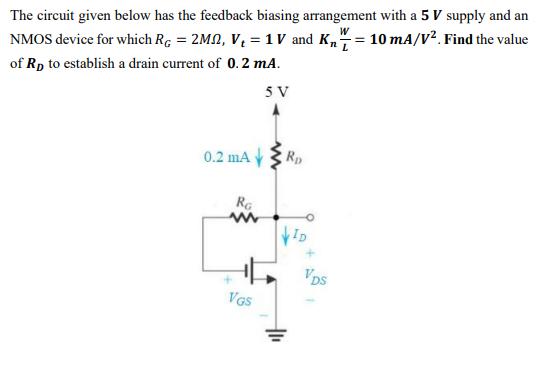

The circuit given below has the feedback biasing arrangement with a 5 V supply and an NMOS device for which RG = 2Mohm, Vt = 1 V and KnW/L = 10 mA/V2. Find the value of RD to establish a drain current of 0.2 mA.
