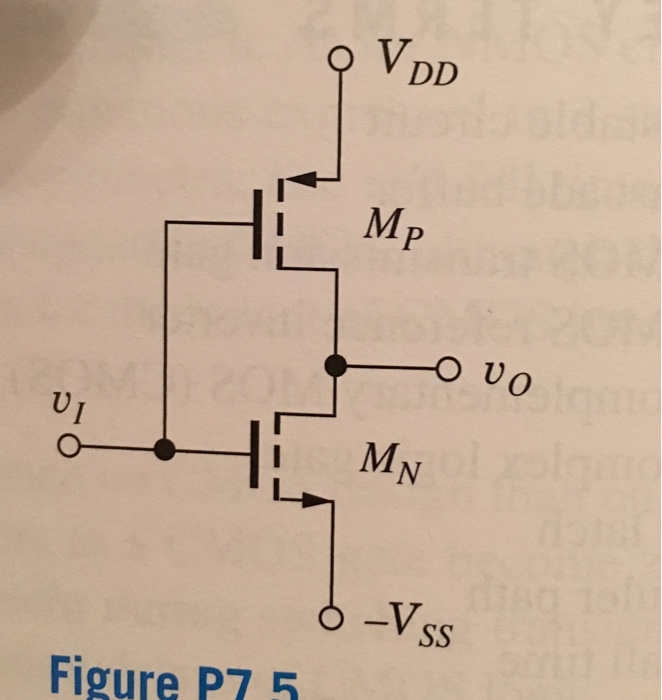

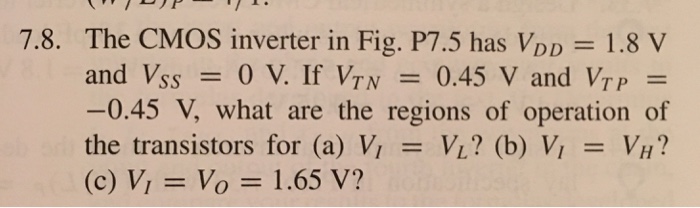

The CMOS inverter in Fig. P7.5 has VDD = 1.8 V and VSS = 0 V. If VTN = -0.45 V, what are the regions of operation of the transistors for (a) VI = VL? (b) VI = VH? (c) VI = Vo = 1.65 V.

The CMOS inverter in Fig. P7.5 has VDD = 1.8 V and VSS = 0 V. If VTN = -0.45 V, what are the regions of operation of the transistors for (a) VI = VL? (b) VI = VH? (c) VI = Vo = 1.65 V.

The CMOS inverter in Fig. P7.5 has VDD = 1.8 V and VSS = 0 V. If VTN = -0.45 V, what are the regions of operation of the transistors for (a) VI = VL? (b) VI = VH? (c) VI = Vo = 1.65 V.

Image text
The CMOS inverter in Fig. P7.5 has VDD = 1.8 V and VSS = 0 V. If VTN = -0.45 V, what are the regions of operation of the transistors for (a) VI = VL? (b) VI = VH? (c) VI = Vo = 1.65 V.

Detailed Answer
