The CMOS inverter in Figure 16.21 is biased at VDD = 3.3 V. Let Kn = Kp , VTN = 0.5 V, and VTP = -0.5 V. (a) Determine the two values of vI and the corresponding values of vO for which (dvO /dvI) = -1 on the voltage transfer characteristics. (b) Find the noise margins.

The CMOS inverter in Figure 16.21 is biased at VDD = 3.3 V. Let Kn = Kp , VTN = 0.5 V, and VTP = -0.5 V. (a) Determine the two values of vI and the corresponding values of vO for which (dvO /dvI) = -1 on the voltage transfer characteristics. (b) Find the noise margins.

Image text
The CMOS inverter in Figure 16.21 is biased at VDD = 3.3 V. Let Kn = Kp , VTN = 0.5 V, and VTP = -0.5 V. (a) Determine the two values of vI and the corresponding values of vO for which (dvO /dvI) = -1 on the voltage transfer characteristics. (b) Find the noise margins.

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up

Similar/Related Questions

16.31 Consider the CMOS inverter in Figure 16.21 biased at VDD = 2.5 V. The transistor parameters are VTN = 0.4 V, VTP = −0.4 V, and Kn = Kp = 100 μA/V2. (a) Find the transition points for the p-channel and n-channel transistors. (b) Sketch the voltage transfer characteristics, including the appropriate voltage values at the transition points. (c) Determine vO for vI = 1.1 V and vI = 1.4 V. Figure P16.21
Solution
0 0

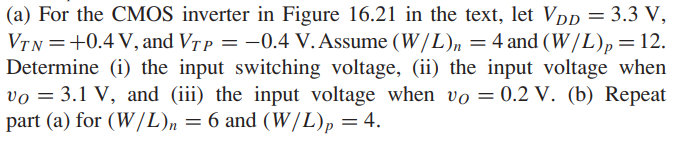

(a) For the CMOS inverter in Figure 16.21 in the text, let VDD = 3.3 V, VTN =+0.4 V, and VTP = -0.4 V. Assume (W/L)n = 4 and (W/L)p = 12. Determine (i) the input switching voltage, (ii) the input voltage when vO = 3.1 V, and (iii) the input voltage when vO = 0.2 V. (b) Repeat part (a) for (W/L)n = 6 and (W/L)p = 4.
Solution
0 0

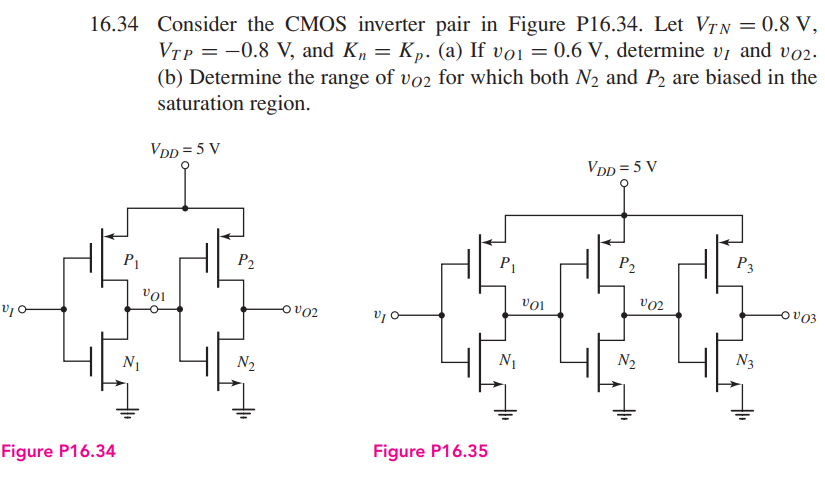

Consider the CMOS inverter pair in Figure P16.34. Let VTN = 0.8 V, VTP = -0.8 V, and Kn = Kp . (a) If vO1 = 0.6 V, determine vI and vO2. (b) Determine the range of vO2 for which both N2 and P2 are biased in the saturation region.
