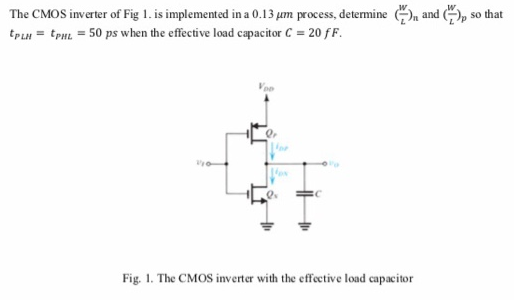

The CMOS inverter of Fig 1. is implemented in a 0.13 μm process, determine (W/L)n and (W/L)p so that tPLH = tPHL = 50 ps when the effective load capacitor C = 20 fF. Fig. 1. The CMOS inverter with the effective load capacitor

The CMOS inverter of Fig 1. is implemented in a 0.13 μm process, determine (W/L)n and (W/L)p so that tPLH = tPHL = 50 ps when the effective load capacitor C = 20 fF. Fig. 1. The CMOS inverter with the effective load capacitor

Image text
The CMOS inverter of Fig 1 . is implemented in a 0.13 μ m process, determine ( W L ) n and ( W L ) p so that t P L H = t P H L = 50 p s when the effective load capacitor C = 20 f F . Fig. 1. The CMOS inverter with the effective load capacitor

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

a) The CMOS inverter of Figure Q4 is implemented in a 0.13−μm process for which μNCox = 500 μA/V2, μPCox = 125 μA/V2, VTN = −VTP = 0.4 V, and VDD = 1.2 V. The NMOS transistor has (W/L)N = 1.5. (i) What must (W/L)p be if QN and Qp are to have equal Ron resistances? (5 marks) (ii) Find the value of RoN. ( 5 marks) Figure Q4 b) Design a symmetric CMOS inverter to achieve a delay of 300 ps when driving a 250 fF load using a 3.3 V power supply. Assume the following parameters: Threshold voltages VTN = −VTP = 0.7 V, KN = 100 μA/V2, KP = 40 μA/V2. Transconductance parameter (N) KN′ = 100 μA/V2, Transconductance parameter (P) KP = 40 μAV2. (15 marks)

Solution
0 0

For a CMOS inverter fabricated in a 65nm process with VDD = 1.0 V, Vtn = Vtp = 0.35 V, K′n = K′p = 500 A/V2, and having (W/L)n and (W/L)p = 4. Find TPHL, TPLH, and TP, when the equivalent load capacitance C = 4 fF. Use the method of average currents. Now, create a NAND gate with worst-case pull-up and pull-down that match the current drive of the inverter. Calculate the worst and best case delays with equivalent load capacitance C = 4 fF. Use the method of average currents.
Solution
0 0

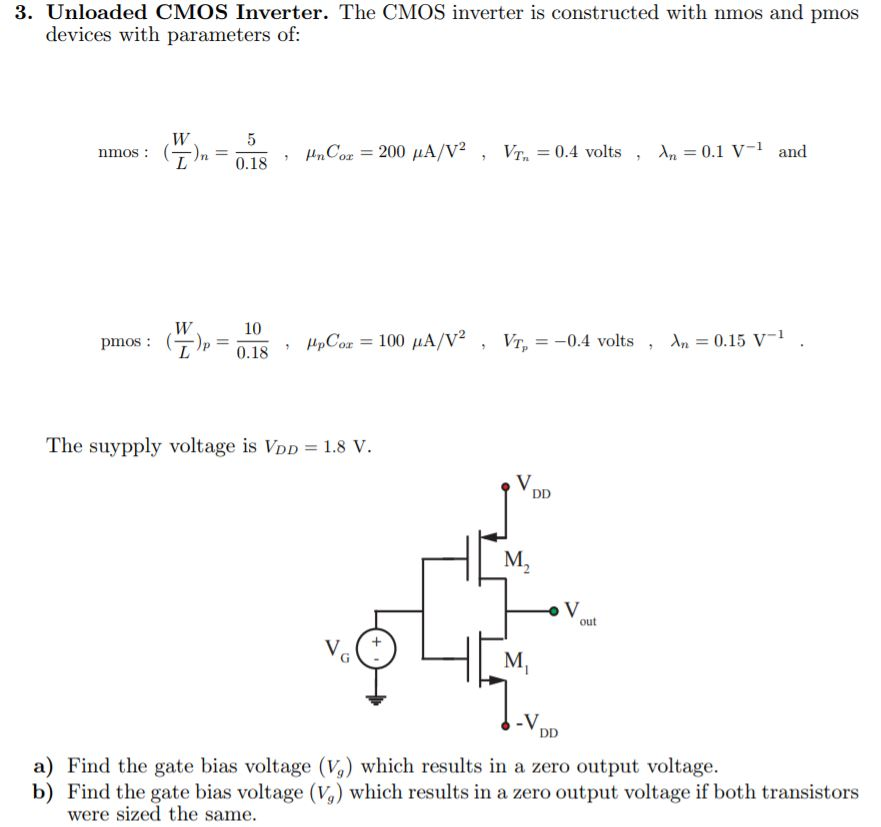

Unloaded CMOS Inverter. The CMOS inverter is constructed with nmos and pmos devices with parameters of: nmos:(W/L)n = 50.18, μnCox = 200 μA/V2, VTn = 0.4 volts, λn = 0.1 V−1 and pmos:(W/L)p = 100.18, μpCox = 100 μA/V2, VTp = −0.4 volts , λn = 0.15 V−1. The suypply voltage is VDD = 1.8 V. a) Find the gate bias voltage (Vg) which results in a zero output voltage. b) Find the gate bias voltage (Vg) which results in a zero output voltage if both transistors were sized the same.
