Question

Notify Me Bookmark

The differential amplifier in the figure below is fabricated in a 0.18-um CMOS technology for with unCox = 400 uA/V^2, |Vt| = 0.5 V, and |VA'| = 10 V/um. If the bias current I = 200 uA and all transistors have a channel length twice the minimum and are operating at |vov| = 0.2 V, find W/L for each of Q1, Q2, Q3, and Q4, and determine the differential voltage gain Ad. The differential amplifier of Fig. 9.12(a) is fabricated in a 0.18-um CMOS technology for which un Cox = 4upCox = 400 uA/V^2, |Vt| = 0.5 V, and |VA'| = 10 V/um.

unCox = 4*upCox = 400 uA/V^2

The differential amplifier in the figure below is fabricated in a 0.18-um CMOS technology for with unCox = 400 uA/V^2, |Vt| = 0.5 V, and |VA'| = 10 V/um. If the bias current I = 200 uA and all transistors have a channel length twice the minimum and are operating at |vov| = 0.2 V, find W/L for each of Q1, Q2, Q3, and Q4, and determine the differential voltage gain Ad. The differential amplifier of Fig. 9.12(a) is fabricated in a 0.18-um CMOS technology for which un Cox = 4upCox = 400 uA/V^2, |Vt| = 0.5 V, and |VA'| = 10 V/um.

Image text
The differential amplifier in the figure below is fabricated in a 0.18-um CMOS technology for with unCox = 400 uA/V^2, |Vt| = 0.5 V, and |VA'| = 10 V/um. If the bias current I = 200 uA and all transistors have a channel length twice the minimum and are operating at |vov| = 0.2 V, find W/L for each of Q1, Q2, Q3, and Q4, and determine the differential voltage gain Ad. The differential amplifier of Fig. 9.12(a) is fabricated in a 0.18-um CMOS technology for which un Cox = 4upCox = 400 uA/V^2, |Vt| = 0.5 V, and |VA'| = 10 V/um.

Detailed Answer

1 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (1)
  • Correct answers (1)
  • Complete solution (1)
  • Step-by-step solution (1)
  • Fully explained (1)

Similar/Related Questions

D 8.7 The current-steering circuit of Fig. P8.7 is fabricated in a CMOS technology for which μnCox = 400 μA/V2, μpCox = 100 μA/V2, Vtn = 0.5 V, Vtp = −0.5 V, VAn′ = 6 V/μm, and |VAp′| = 6 V/μm. If all devices have L = 0.5 μm, design the circuit so that IREF = 20 μA, I2 = 80 μA, I3 = I4 = 50 μA, and I5 = 100 μA. Use the minimum possible device widths needed to operate the current source Q2 with voltages at its drain as high as + 0.8 V and to operate the current sink Q5 with voltages at its drain as low as −0.8 V. Specify the widths of all devices and the value of R. Find the output resistance of the current source Q2 and the output resistance of the current sink Q5.

Solution
2 0

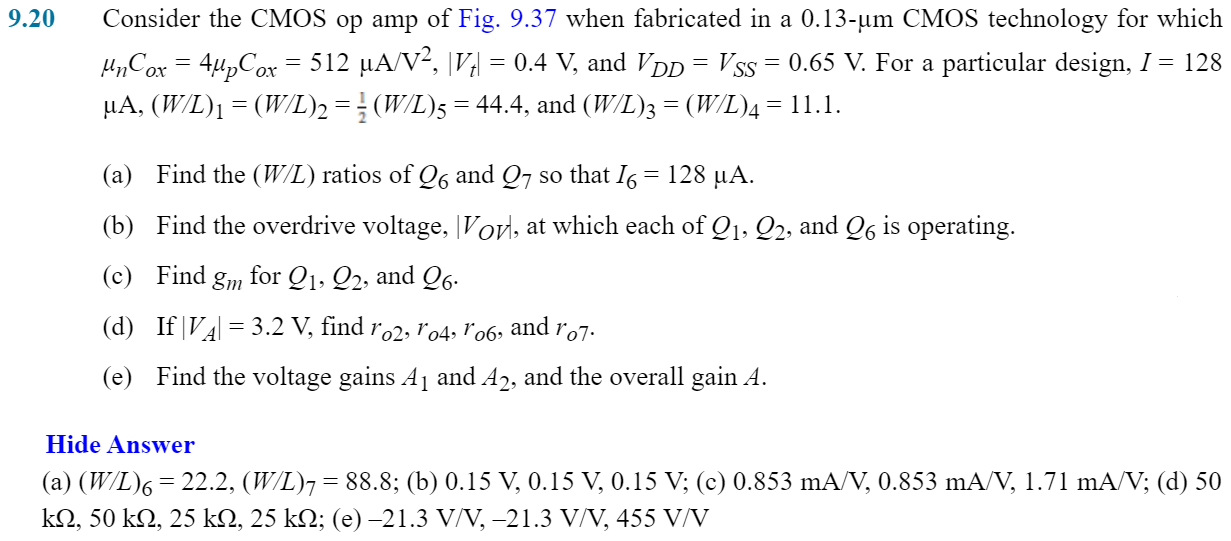

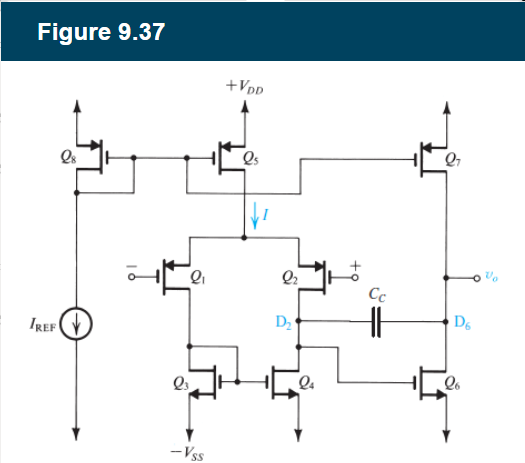

Consider the CMOS op amp of Fig. 9.37 when fabricated in a 0.13-µm CMOS technology for which μnCox = 4µpCox = 512 µA/V2, |Vt| = 0.4 V, and VDD = VSS = 0.65 V. For a particular design, 1 = 128 µA, (W/L), = (W/L)2 = 1/2(W/L)5 = 44.4, and (W/L)3 = (W/L)4 = 11.1. (a) Find the (W/L) ratios of Q6 and Q7 so that I6 = 128 µA. (b) Find the overdrive voltage, |Vov|, at which each of Q1, Q2, and Q6 is operating. (c) Find gm for Q1, Q2, and Q6. (d) If|VA|= 3.2 V, find ro2, ro4, ro6 and ro7 (e) Find the voltage gains A1 and A2, and the overall gain A.

Consider the CMOS op amp of Fig. 9.37 when fabricated in a 0.13-µm CMOS technology for which μnCox = 4µpCox = 512 µA/V2, |Vt| = 0.4 V, and VDD = VSS = 0.65 V. For a particular design, 1 = 128 µA, (W/L), = (W/L)2 = 1/2(W/L)5 = 44.4, and (W/L)3 = (W/L)4 = 11.1. (a) Find the (W/L) ratios of Q6 and Q7 so that I6 = 128 µA. (b) Find the overdrive voltage, |Vov|, at which each of Q1, Q2, and Q6 is operating. (c) Find gm for Q1, Q2, and Q6. (d) If|VA|= 3.2 V, find ro2, ro4, ro6 and ro7 (e) Find the voltage gains A1 and A2, and the overall gain A.

Solution
0 0

The differential amplifier of Fig. 5 is biased with I = 100 μA. All transistors have L = 2 μm, and Q1 and Q2 have W/L = 50. All transistors are operated in saturation region. The circuit is fabricated in a process for which μnCox = 200 μA/V2 and |VA′| = 5 V/μm. Find gm1, 2, ro2, ro4, and Ad = vo/vid. Fig. 5
Solution
0 0
