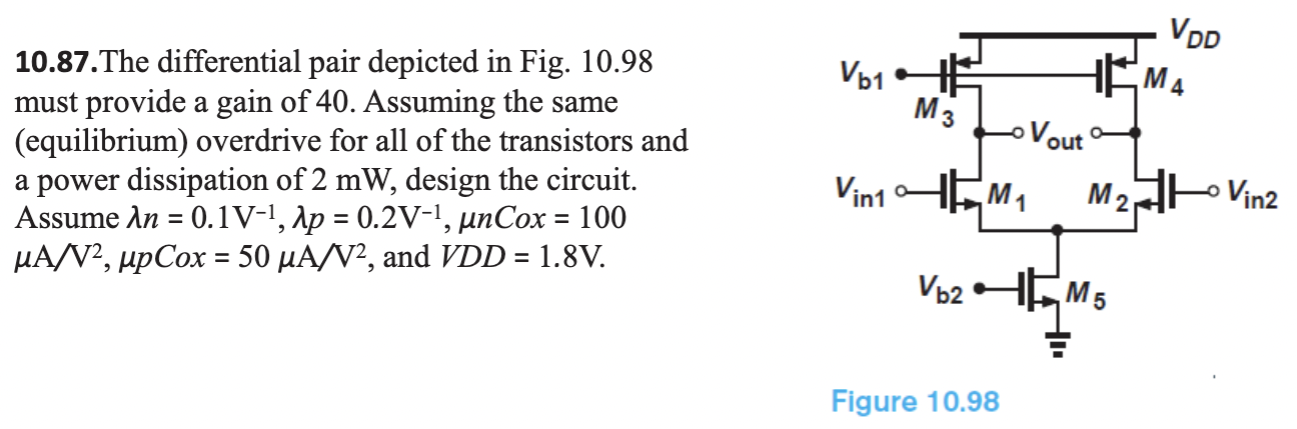

The differential pair depicted in Fig. 10.98 must provide a gain of 40. Assuming the same (equilibrium) overdrive for all of the transistors and a power dissipation of 2 mW, design the circuit. Assume λn = 0.1 V−1, λp = 0.2 V−1, μnCox = 100 μA/V2, μpCox = 50μA/V2, and VDD = 1.8 V.
