The dynamic power consumption of Logic gates varies with the of power supply voltage. Square Cube Linear fourth power

The dynamic power consumption of Logic gates varies with the of power supply voltage. Square Cube Linear fourth power

Image text

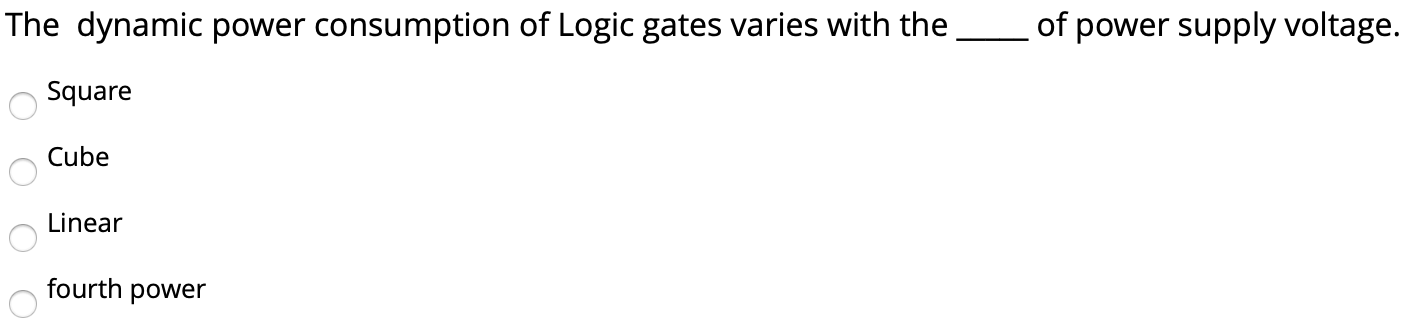

The dynamic power consumption of Logic gates varies with the of power supply voltage.
Square Cube Linear fourth power

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

Question 2. [6] A pseudo-NMOS inverter is shown in the figure below, with the process parameters shown next to the figure. a) [3] Find Vbias and (W/L)p, leading to equal rise and fall times, and VOL = 0.1 V. Explain your solution in detail. VDD = 1.2 V CL = 1 pF Cox = 8 fF/μm2 Vtn = |Vtp| = 0.3 Vμn = 3 μp = 0.06 m2 /Vs (W/L)n = 2 PA = 1 = 0.3 Vbias = (W/L)p = b) [2] Find the static power consumption of this circuit. Pstat = c) [1] Find the dynamic power consumption when input A is received from a system clocked at 1 GHz. (Hint: Pdyn = P1→0 fCLVDD(VDD−VOL)). Pdyn =

Solution
0 0

Consider the following ID−VG characteristics shown for two transistors of equal size, one with a higher threshold voltage (VTH) and another with a lower threshold voltage (VTL) (note: ID axis is in log scale). Assume that VTH is 100mV higher than VTL = 100 mV. a. If the low VT transistor shows an OFF current of IOFFL = 1 nA at room temperature (27∘C), estimate the OFF current of the high VT transistor (IOFFH) at room temperature. b. Estimate the OFF current of both transistors at 100∘C and compare the values with the values at room temperature. c. If the high VT transistor operates at supply voltage VDDH = 1 V and the low VT transistor operates at supply voltage VDDL = 0.5 V, estimate the standby power consumption of a chip that contains one billion of high VT off transistors operating at VDDH = 1 V and the standby power of a chip that contains one billion of low VT off transistors operating at VDDL = 0.5 V. Perform the power estimation for room temperature and 100∘C. d. Compare the standby power consumption of the low VT chip with the high VT chip and explain the difference.
Solution
0 0

Problem 5: CMOS Power Dissipation and Propagation Delay (12pts) An IC inverter fabricated in a 0.18 μm CMOS process is found to have a load capacitance of 110 fF. The inverter is operated from a 1.8 V power supply. The IC chip has 1 million inverters operating at a switching frequency is 3 GHz. For the delay calculations, you can approximate the NMOS and PMOS transistors with 1 kΩ and 2 kΩ resistances, respectively. Show your equations and number answer. (i) How much energy is required to charge and discharge the load capacitance? (4pts) (ii) What is the dynamic power dissipation of the entire IC? (4pts) (iii) What is the average current drawn from the power supply? (4pts) (iv) (Extra Credit) For each inverter, what is the propagation delay for the output voltage going high to low? (2pts)
Solution
0 0
