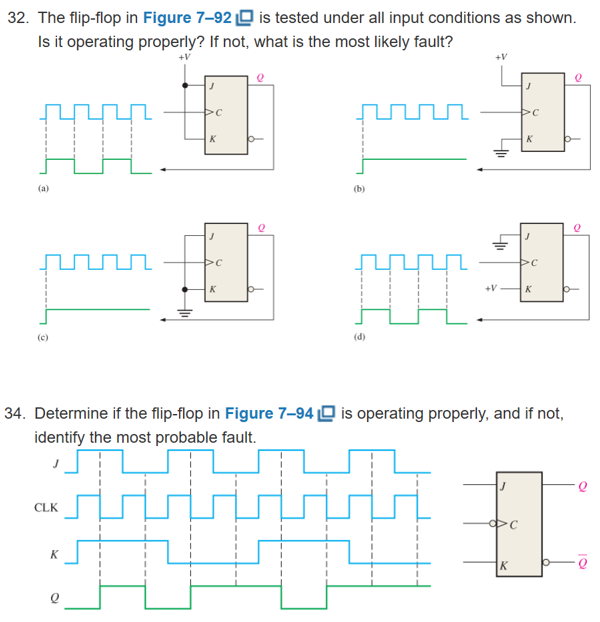

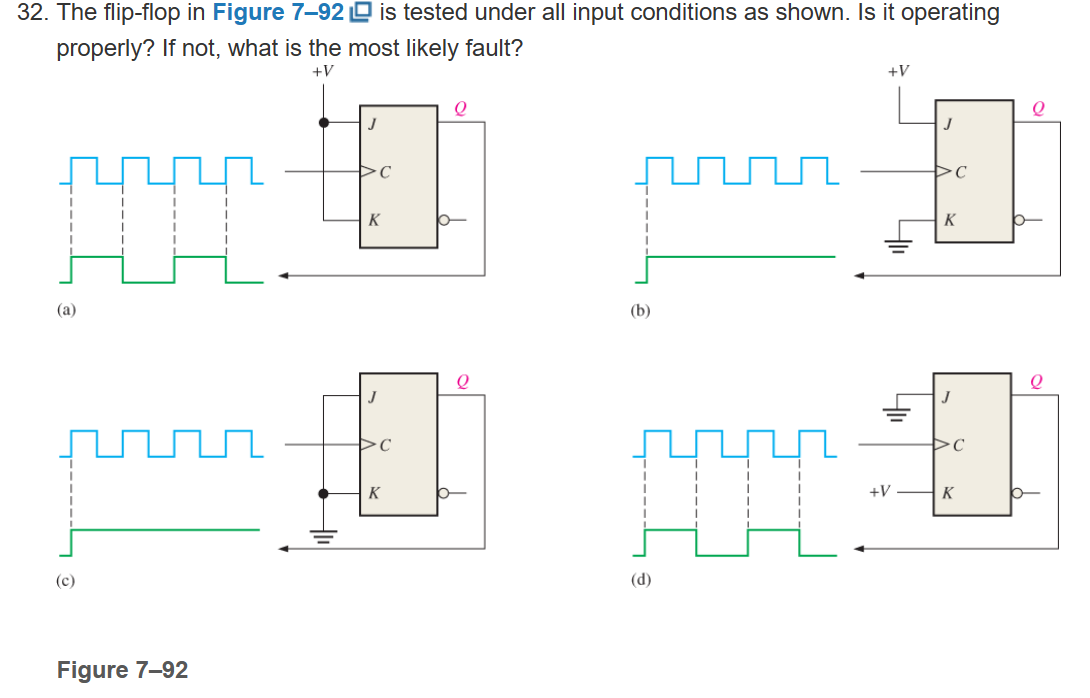

The flip-flop in Figure 7-92 is tested under all input conditions as shown. Is it operating properly? If not, what is the most likely fault? (a) (c) (b) (d) Figure 7-92

The flip-flop in Figure 7-92 is tested under all input conditions as shown. Is it operating properly? If not, what is the most likely fault? (a) (c) (b) (d) Figure 7-92

Image text
  1. The flip-flop in Figure 7-92 is tested under all input conditions as shown. Is it operating properly? If not, what is the most likely fault? (a) (c) (b) (d) Figure 7-92
