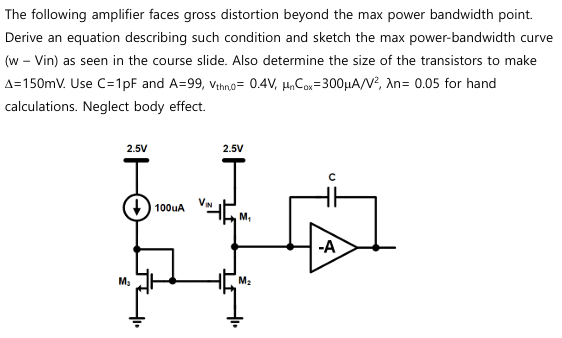

The following amplifier faces gross distortion beyond the max power bandwidth point. Derive an equation describing such condition and sketch the max power-bandwidth curve ( w - Vin) as seen in the course slide. Also determine the size of the transistors to make Δ = 150 mV. Use C = 1 pF and A = 99, vthn,0 = 0.4 V, μnCox = 300 μA/V2, λn = 0.05 for hand calculations. Neglect body effect.

The following amplifier faces gross distortion beyond the max power bandwidth point. Derive an equation describing such condition and sketch the max power-bandwidth curve ( w - Vin) as seen in the course slide. Also determine the size of the transistors to make Δ = 150 mV. Use C = 1 pF and A = 99, vthn,0 = 0.4 V, μnCox = 300 μA/V2, λn = 0.05 for hand calculations. Neglect body effect.

Image text
The following amplifier faces gross distortion beyond the max power bandwidth point. Derive an equation describing such condition and sketch the max power-bandwidth curve ( w - Vin) as seen in the course slide. Also determine the size of the transistors to make Δ = 150 m V . Use C = 1 p F and A = 99 , v thn , 0 = 0.4 V , μ n C o x = 300 μ A / N 2 , λ n = 0.05 for hand calculations. Neglect body effect.

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

(a) Choose VB such that M1 is 300mV away from the triode region (VDS1 = VGS1-VTH1+300mV; M1 and M2 operate in Saturation region). (b) Calculate the small-signal voltage gain (VOUT/VIN). (c) Assume VB = 1.43 V, calculate the maximum output voltage swing to keep all transistors in saturation. Neglect channel length modulation. (d) Assume the maximum output swing is VOUT = 2.23 VPP, Calculate the swing at node X. In Fig. 2, assume (W/L)1 = 12 μm/0.18 μm, (W/L)2 = 24 μm/0.36 μm, ID1 = ID2 = 0.5 mA, and RD = 2 kΩ, VTH,N = 0.5 V, μnCox = 150 μA/V2, VDD = 3.3 V, λn = 0.1 V-1. Neglect body effect. Neglect channel length modulation except doing output impedance calculation.
Solution
5 0

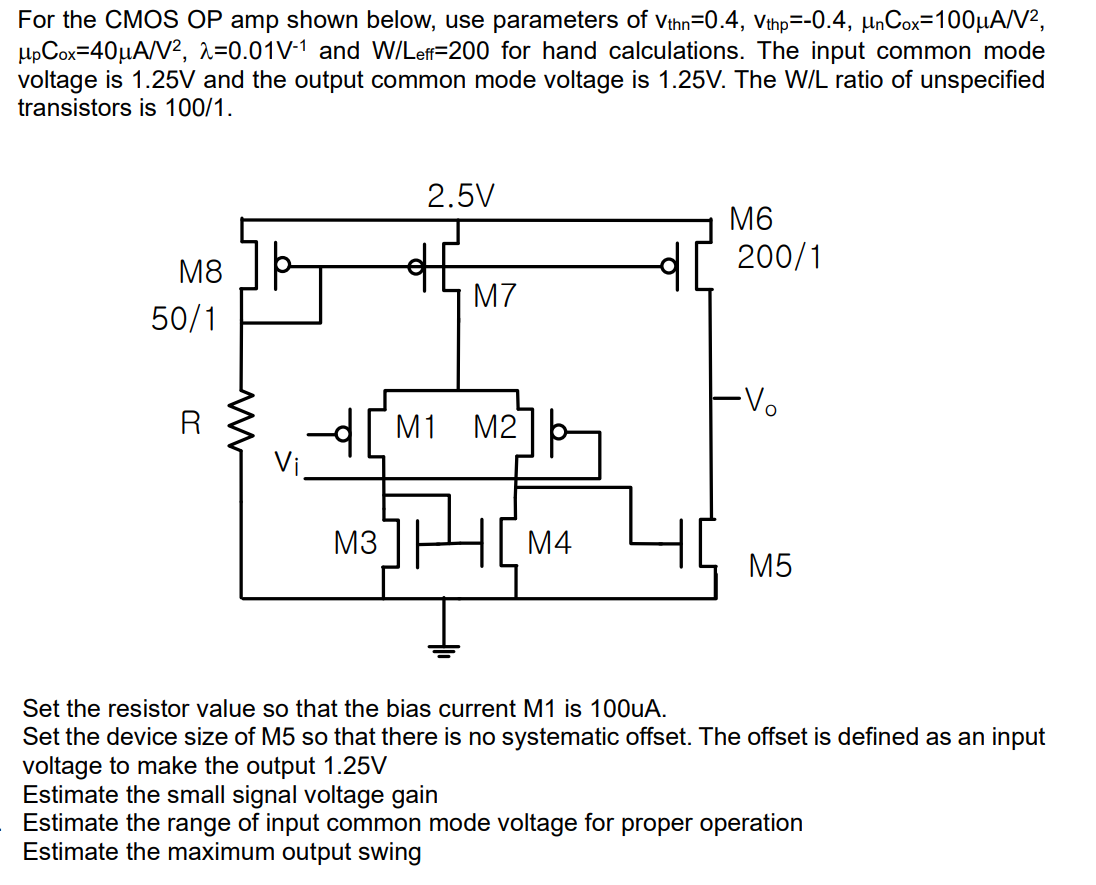

For the CMOS OP amp shown below, use parameters of vthn = 0.4, vthp = −0.4, μnCox = 100 μA/V2, μpCox = 40 μA/V2, λ = 0.01 V−1 and W/Leff = 200 for hand calculations. The input common mode voltage is 1.25 V and the output common mode voltage is 1.25 V. The W/L ratio of unspecified transistors is 100/1. Set the resistor value so that the bias current M1 is 100 uA. Set the device size of M5 so that there is no systematic offset. The offset is defined as an input voltage to make the output 1.25 V Estimate the small signal voltage gain Estimate the range of input common mode voltage for proper operation Estimate the maximum output swing
