The input to an inverting opamp amplifier circuit (as shown in Figure 4.11 in our textbook) is v s = −0.1 V and Rs = 1kΩ. If the opamp's supply voltage is Vcc = 10 V, what is the maximum value that Rf can assume before saturating the op amp? Figure P4.11: Circuit for Problems 4.11 and 4.12.

The input to an inverting opamp amplifier circuit (as shown in Figure 4.11 in our textbook) is v s = −0.1 V and Rs = 1kΩ. If the opamp's supply voltage is Vcc = 10 V, what is the maximum value that Rf can assume before saturating the op amp? Figure P4.11: Circuit for Problems 4.11 and 4.12.

Image text
The input to an inverting opamp amplifier circuit (as shown in Figure 4.11 in our textbook) is v s = − 0.1 V and R s = 1 k Ω . If the opamp's supply voltage is V c c = 10 V , what is the maximum value that R f can assume before saturating the op amp?

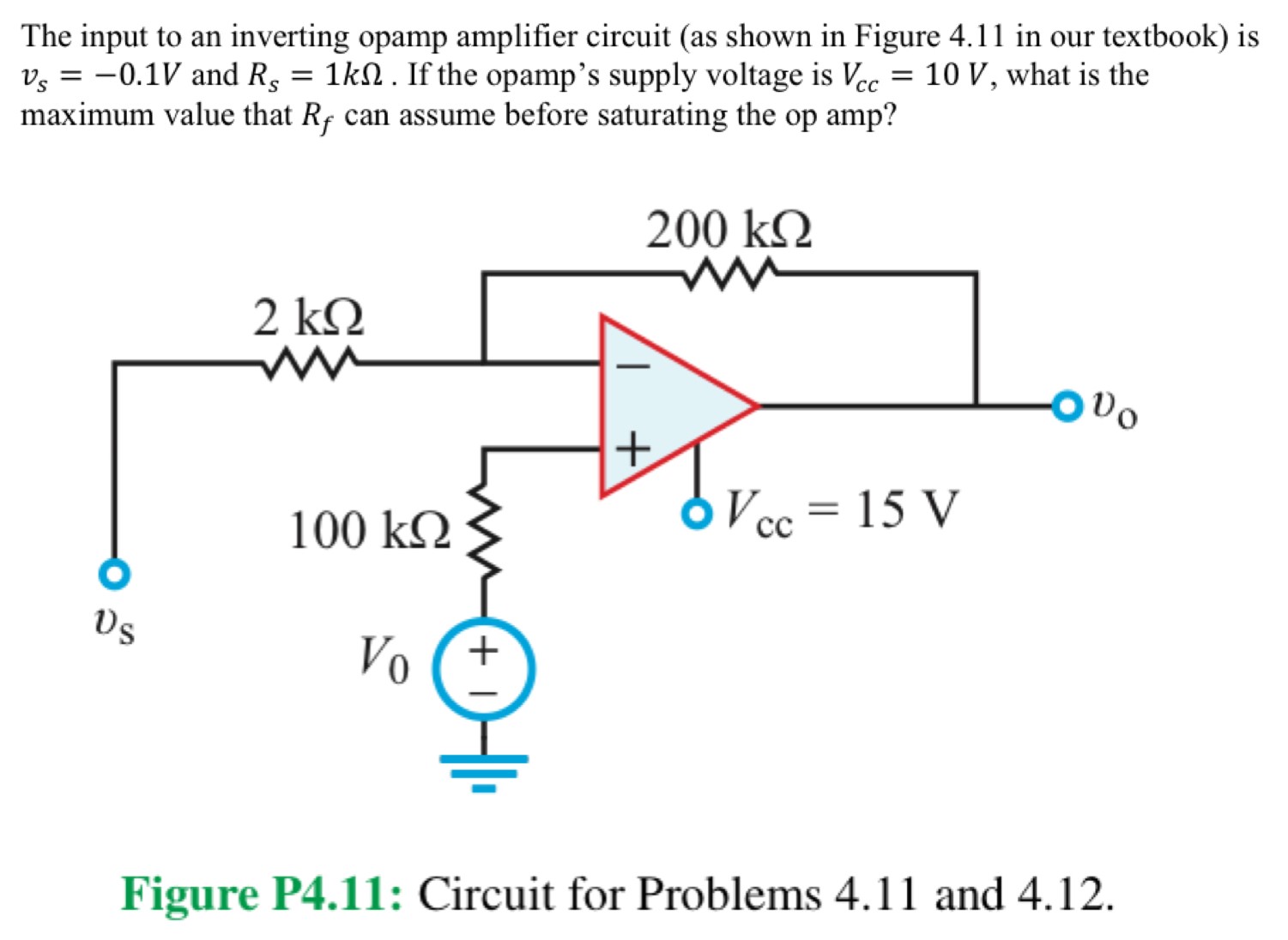

Figure P4.11: Circuit for Problems 4.11 and 4.12.
